Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1988
>>
Monte Carlo V6-262 4.3L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>

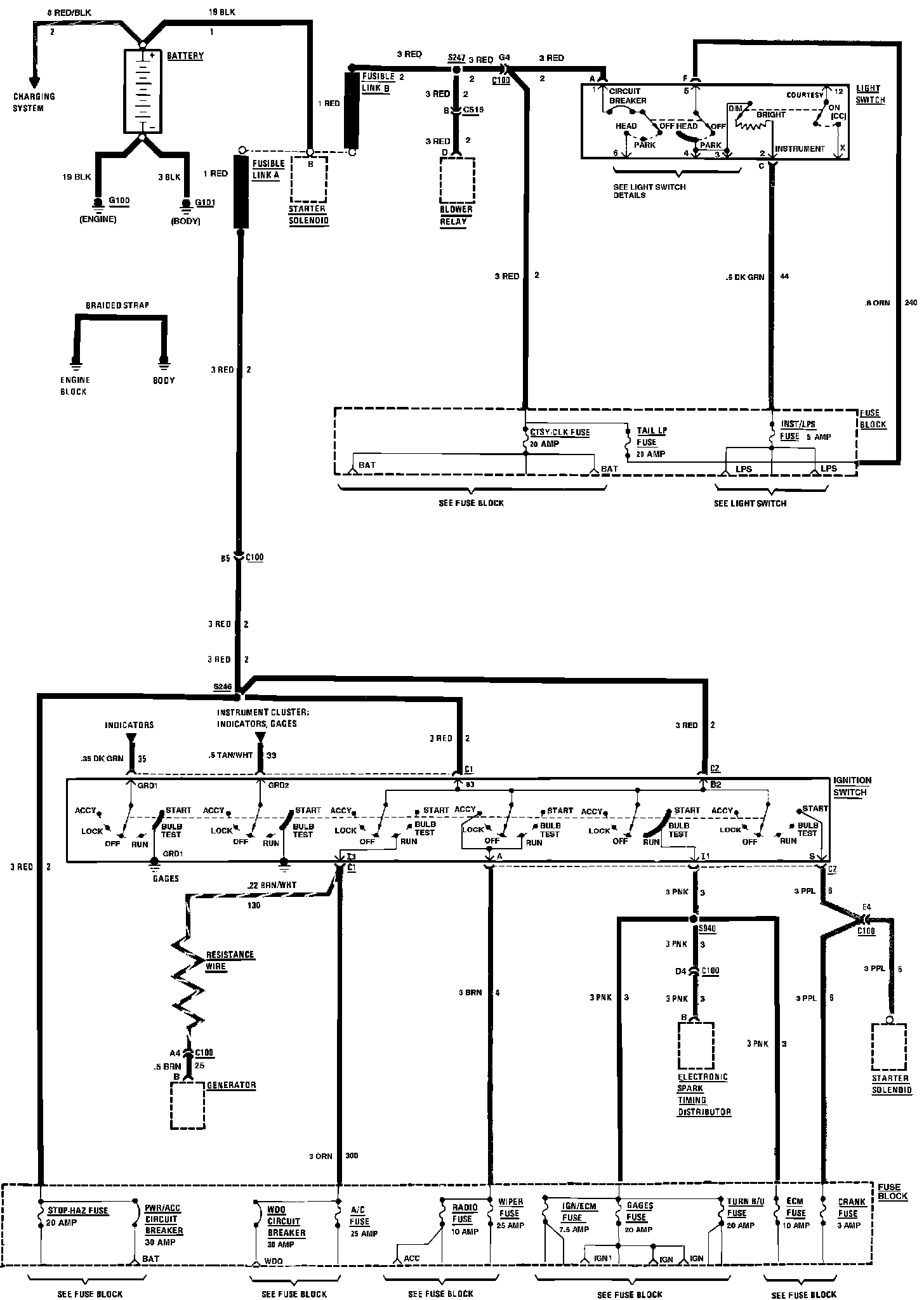

Power Distribution Wiring Circuit
Power Distribution Wiring Circuit
Power Distribution Wiring Circuit:
