Monte Carlo V8-305 5.0L VIN H 4-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Fuel Gauge
Fuel Gauge

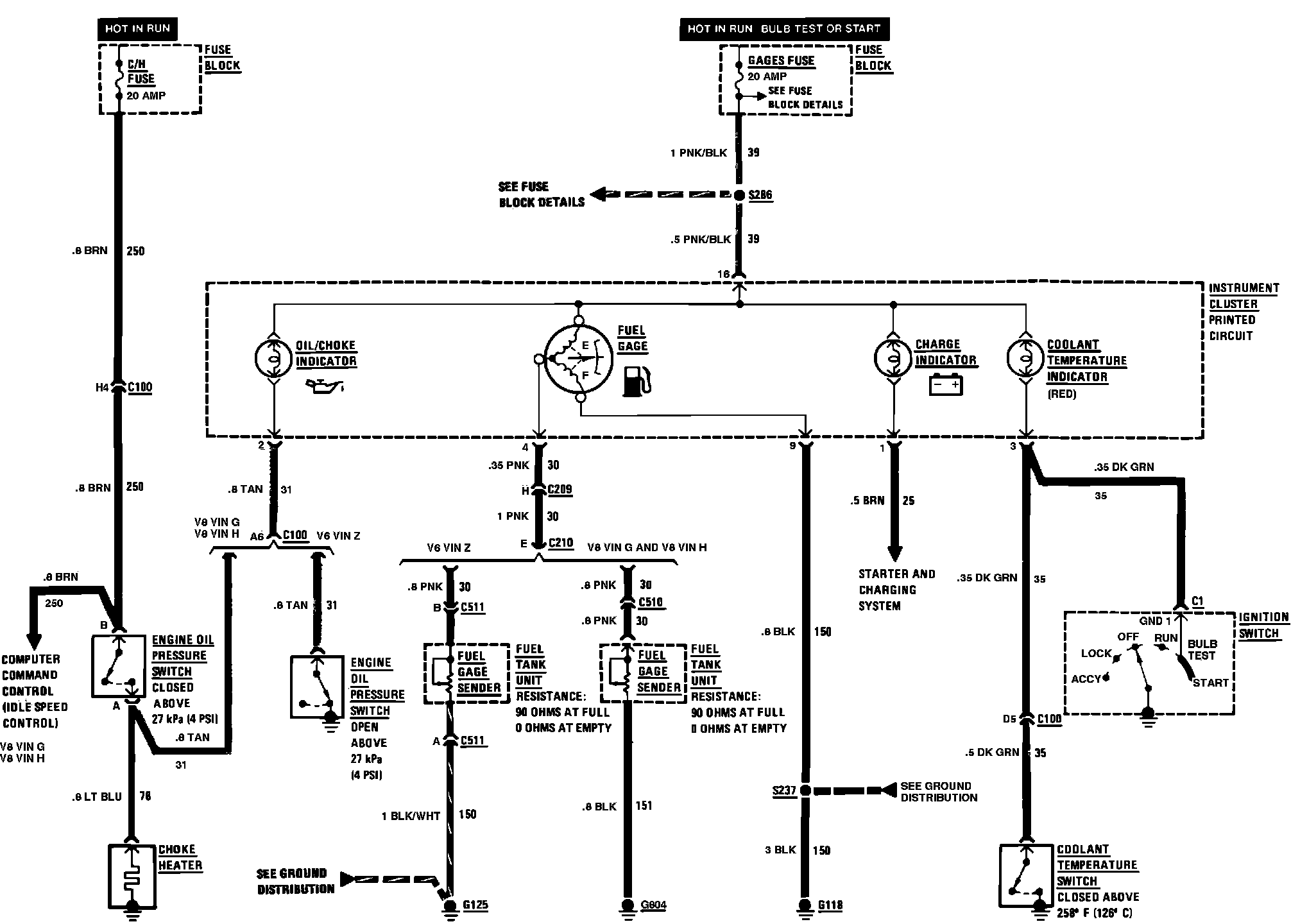

Indicators & Fuel Gauge (W/Indicator Cluster):
