Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1988
>>
Monte Carlo V8-305 5.0L VIN H 4-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Parking Lamp

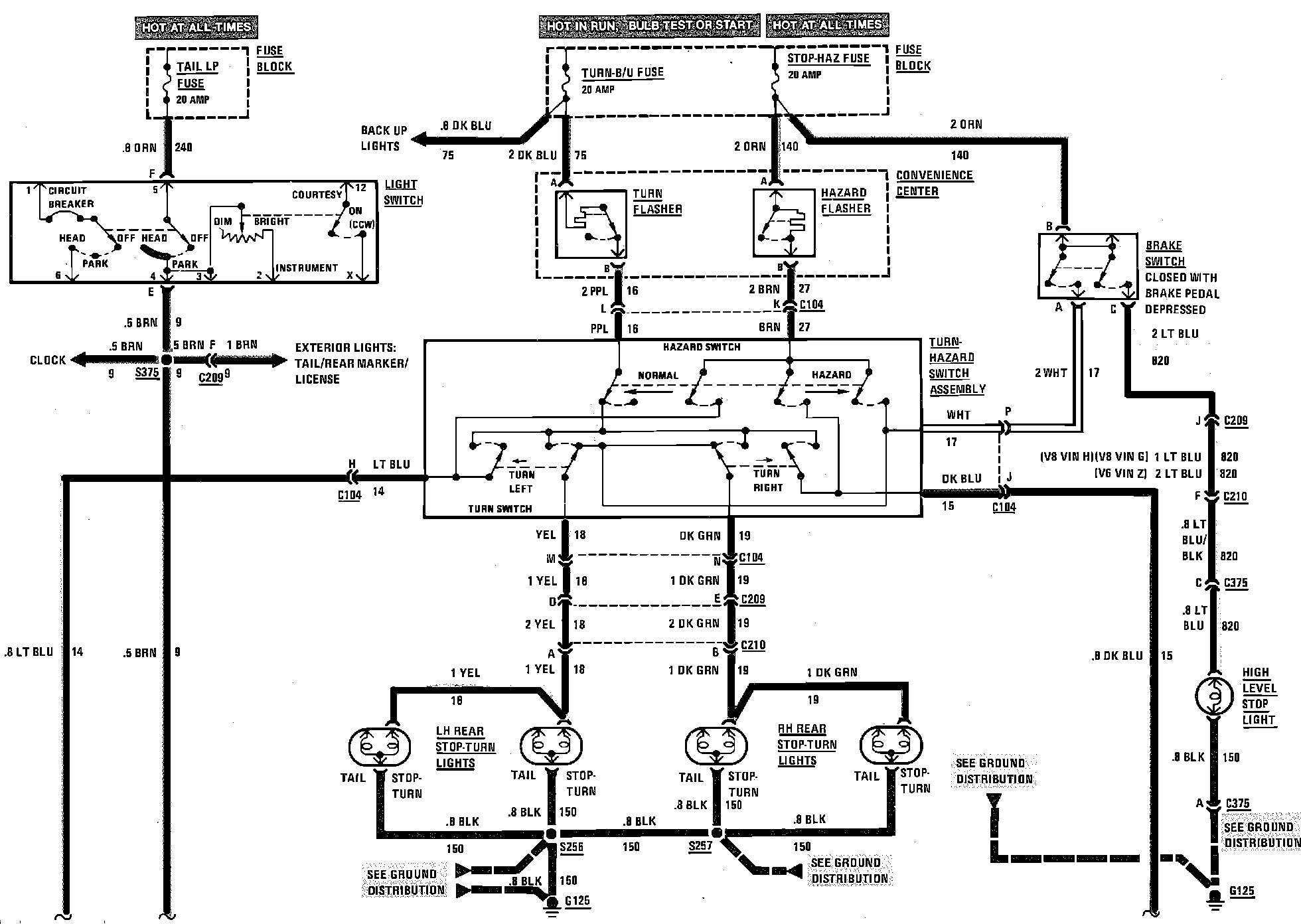

Parking Lamp
Frt Marker, Hazard, Parking, High Level Stop, Stop & Turn:
Frt Marker, Hazard, Parking, High Level Stop, Stop & Turn:
