Chevrolet
>>
1988
>>
Monte Carlo V8-305 5.0L VIN H 4-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
50 States
50 States

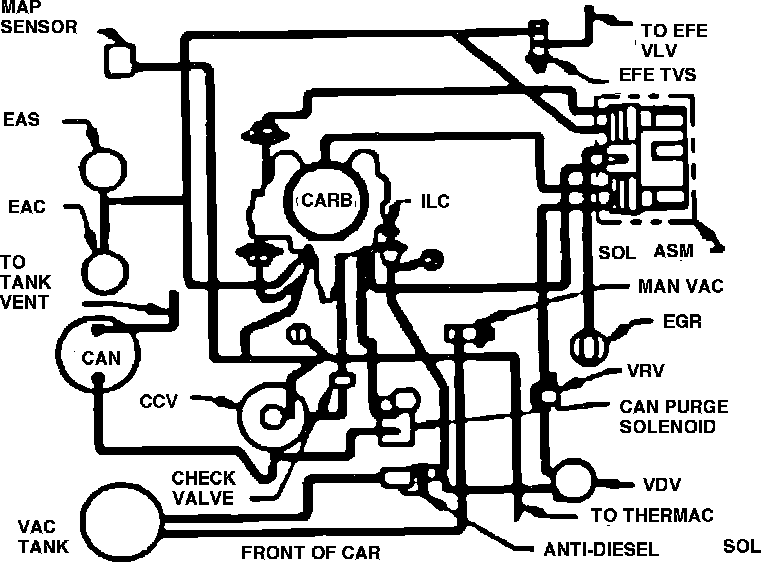

Vacuum Hose Diagram:
