Fuse Block Details

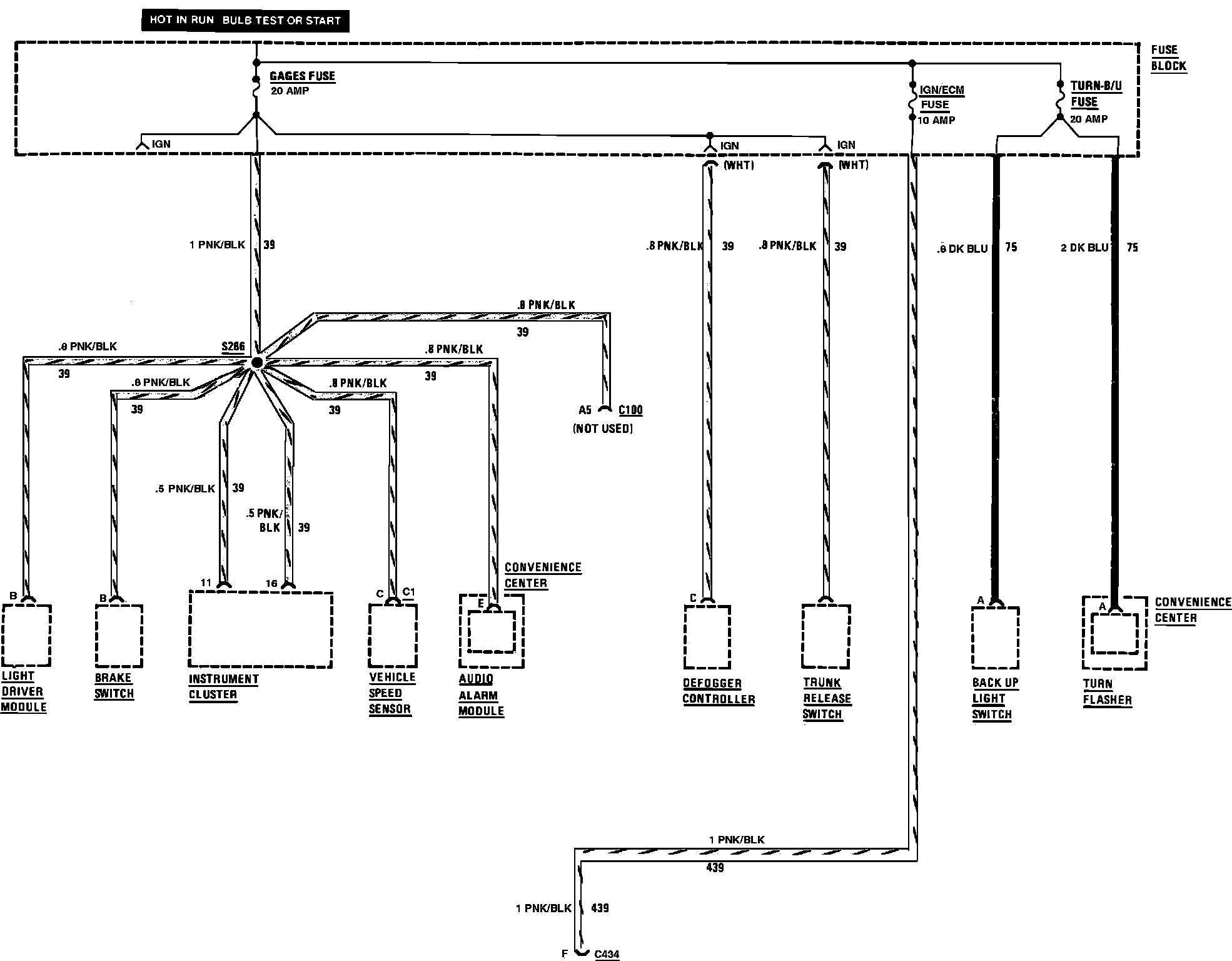

Gages Fuse, Ignition-ECM Fuse & Turn-Back-Up Fuse:

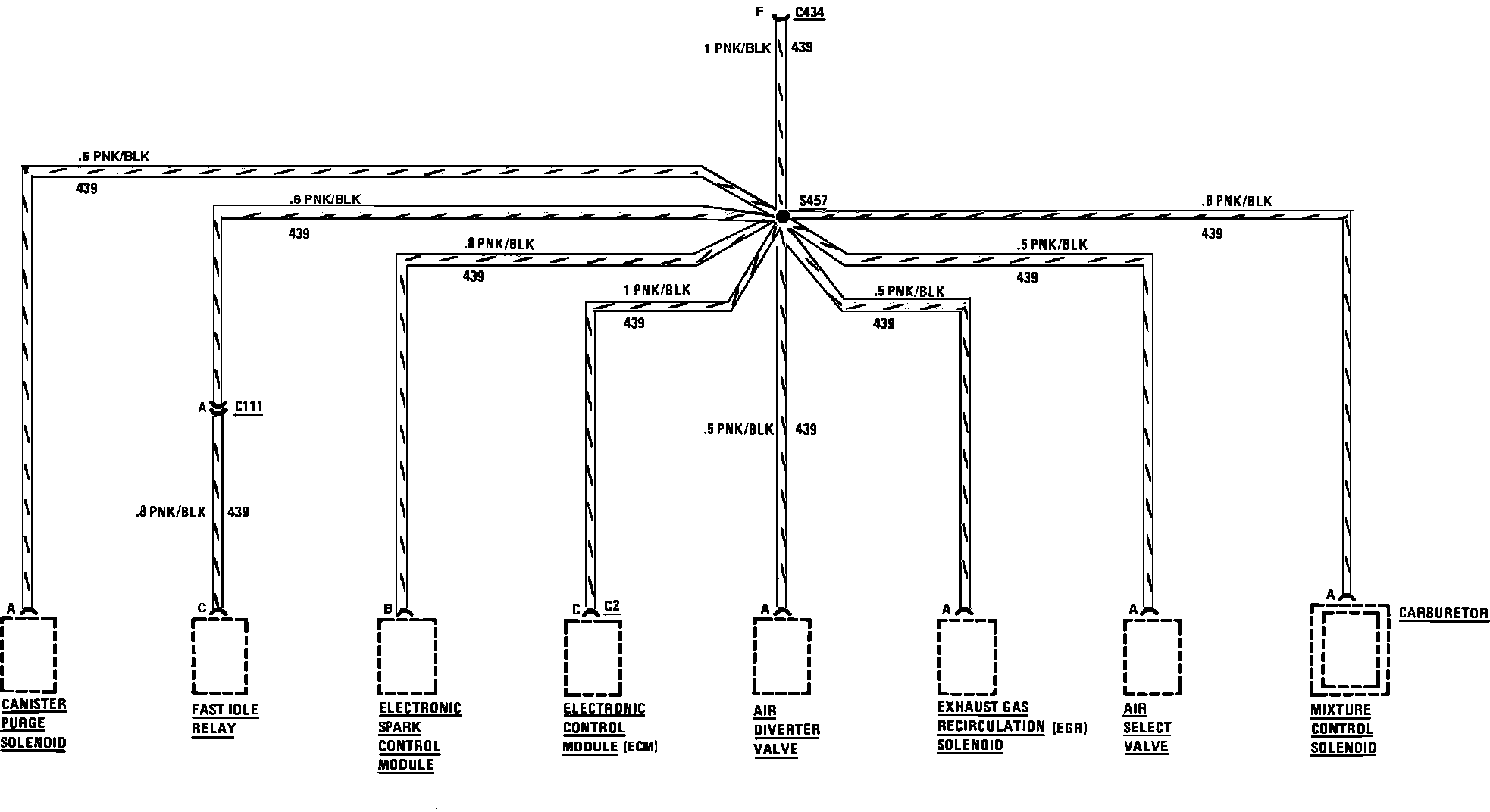

Gages Fuse, Ignition-ECM Fuse & Turn-Back-Up Fuse:
