Brake Light Switch: Testing and Inspection

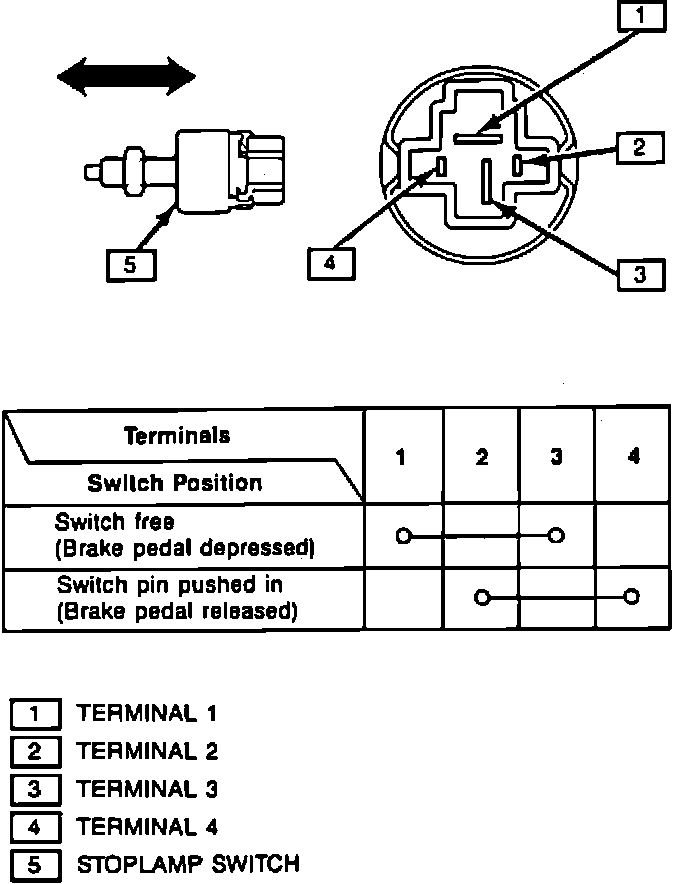

Fig. 18 Testing Stop Light Switch:






Refer to Fig. 18 to test stop light switch.
