Non-Turbo
Non-Turbo

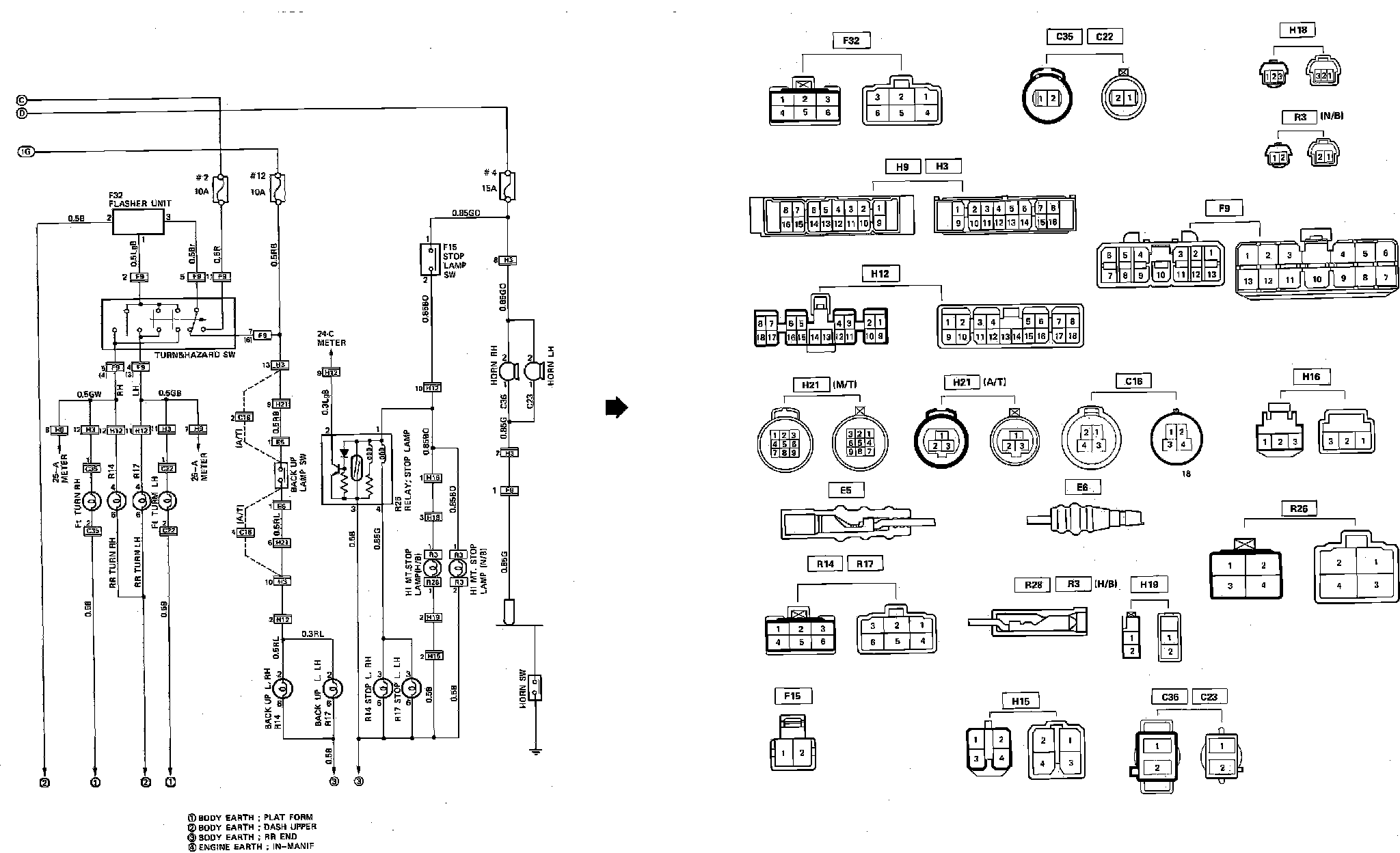

Fig. 013d Back-Up, Hazard, Stop, Turn Signal Lamp & Horn Wiring Circuit. Non-Turbocharged Models:
