Fig. 4 Reference Diagram, 1987-88 4-90 (1.5L)

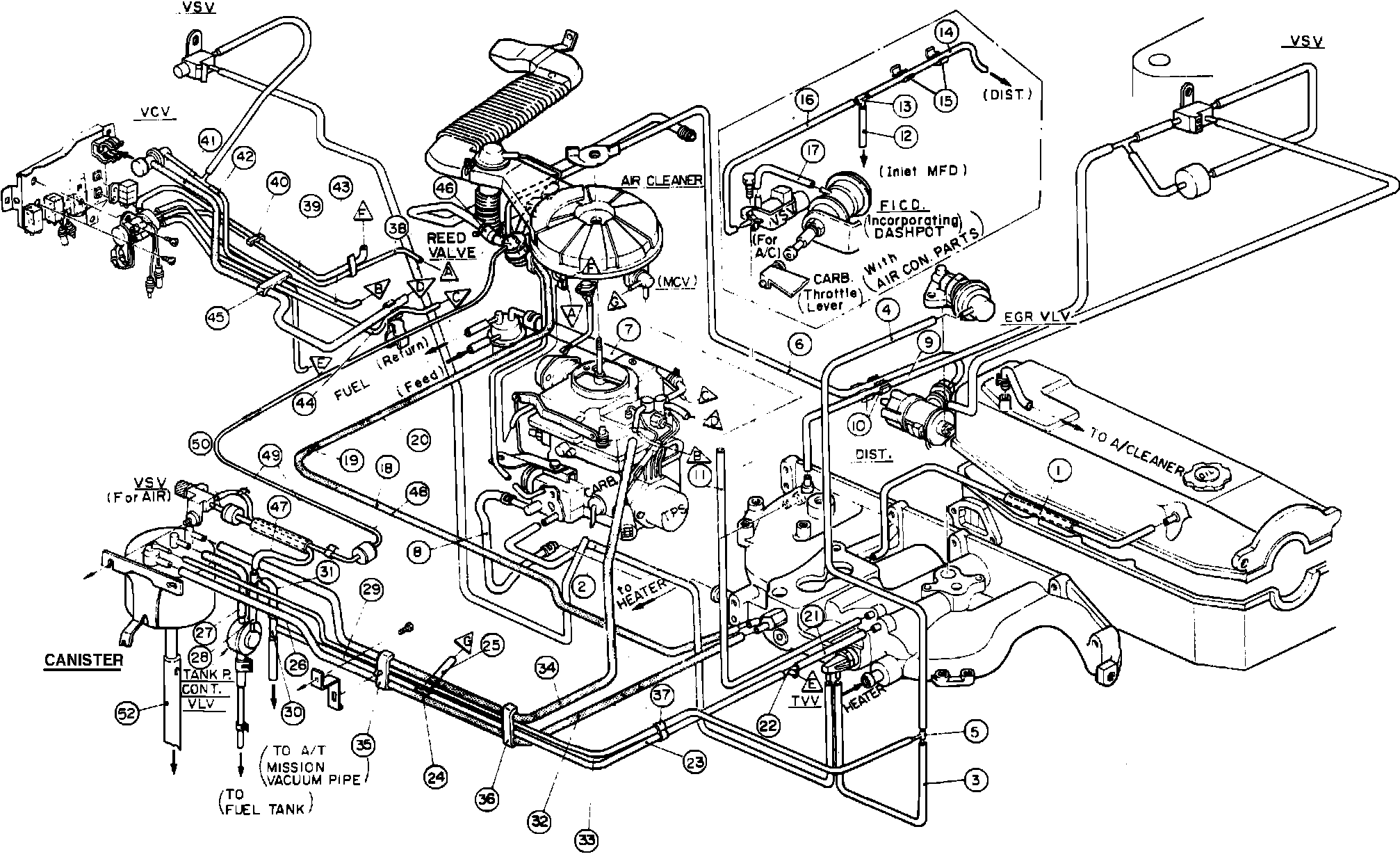

Fig. 4 Engine compartment reference diagram. 1987 - 88 4-90 (1.5L):
