Blower Motor: Service and Repair

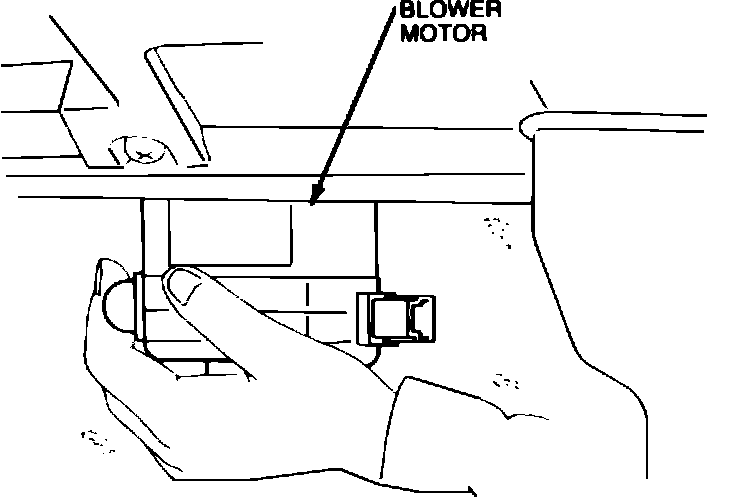

Fig. 8 Blower motor replacement:

1. Disconnect battery ground cable.
2. Disconnect blower motor electrical connector from motor case.
3. On models equipped with A/C, disconnect rubber hose from case.
4. On all models, rotate blower motor counterclockwise and remove from case, Fig. 8.
5. Reverse procedure to install.
