Home >> Chevrolet >> 1988 >> Spectrum-Import L4-91.5 1509cc 1.5L Turbo VIN 9 FI >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Mixture Bypass Solenoid Circuit

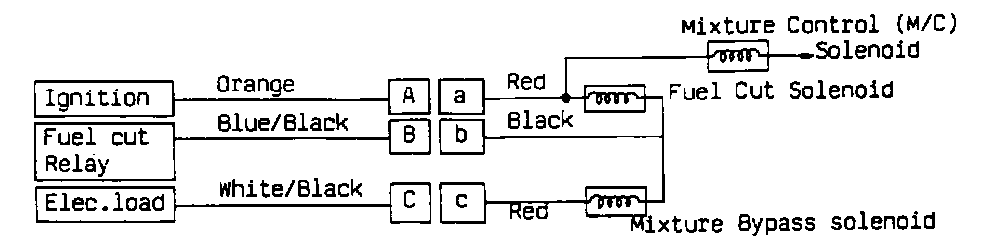

Mixture Bypass Solenoid Circuit
