A/T - Installation Tip for 1st/Reverse Clutch Snap Ring

90chevy15
Number: 88-438-7A

Section: 7A

Date: April 1990

Corp. Bulletin No.: 957101
Subject: AUTOMATIC TRANSAXLE 1ST/REVERSE CLUTCH SNAP RING


Model and Year: 1988 R CAR

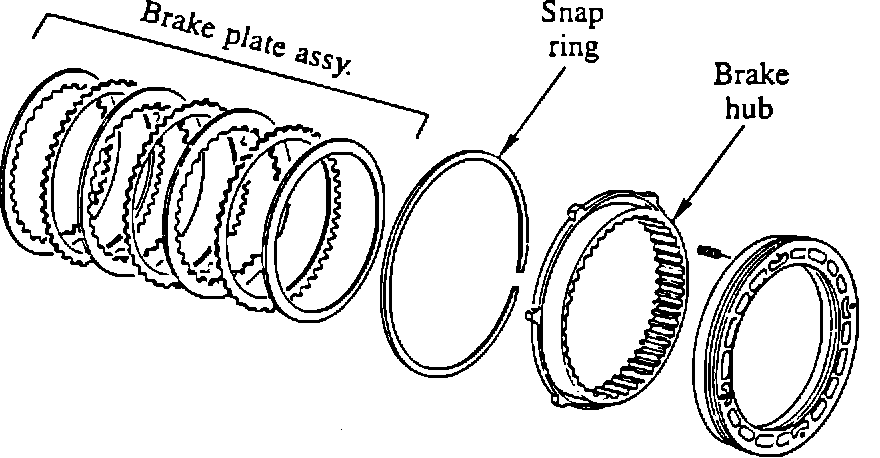

Figure 1:

When overhauling the automatic transaxle assembly, installing a snap ring between the low/reverse brake plate assembly and the brake hub (Figure 1) will make reassembly easier. This snap ring is included in the transaxle overhaul kit, but is not installed in the transmission during initial assembly by the factory.

Part No. Description

8-94140-795-0 Snap Ring

This is included in:

8-94151-718-0 A/T Repair Kit
