Radio, Stereo, and Compact Disc
>>
Delco Bose W/Amplified Speaker System
Delco Bose W/Amplified Speaker System

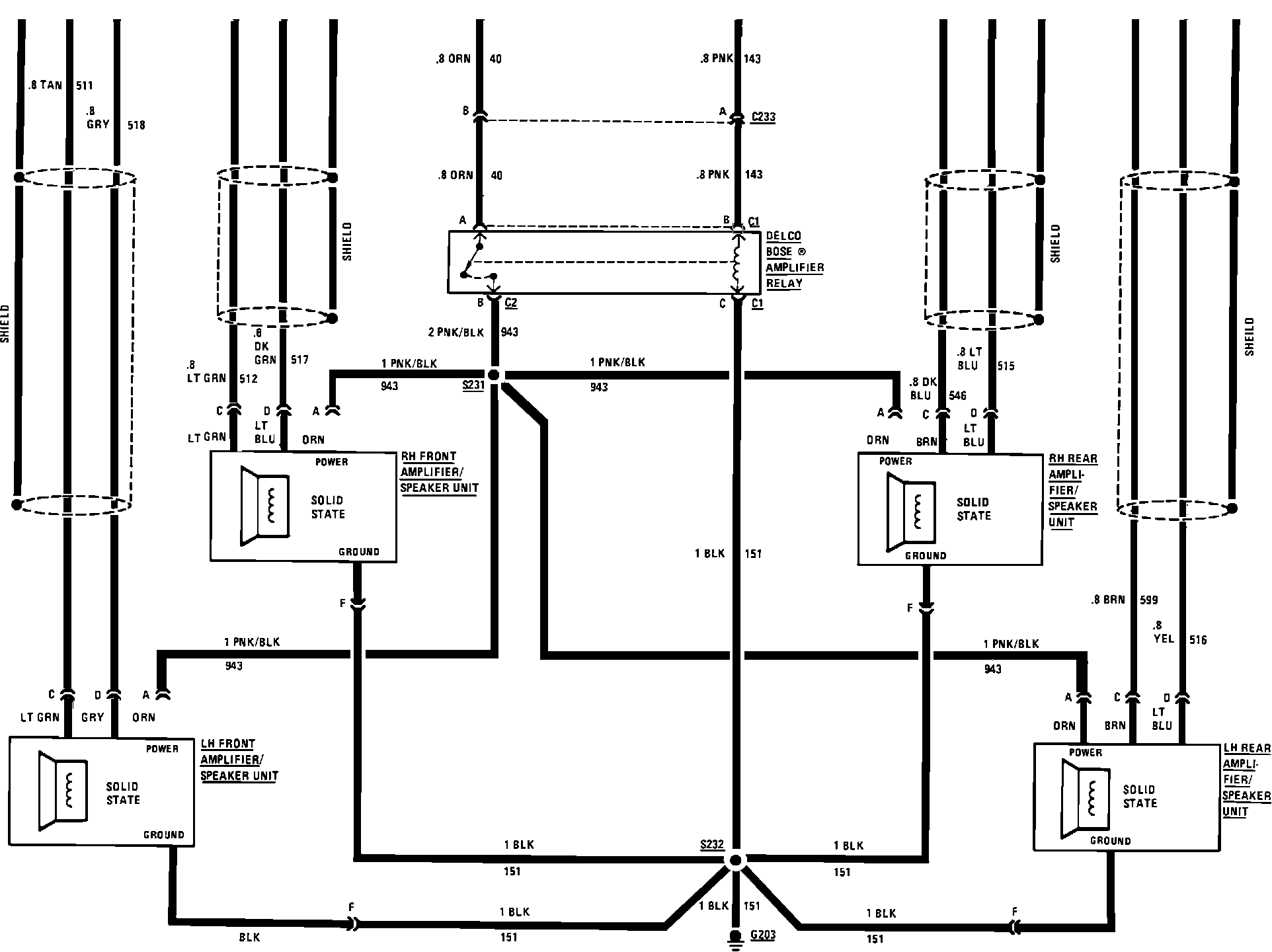

Radio (Delco-Bose W/Amplified Speaker System):
Radio (Delco-Bose W/Amplified Speaker System):
