Emission Control Systems
>>
Emission System Vacuum and Vapor Hose
Emission System Vacuum and Vapor Hose

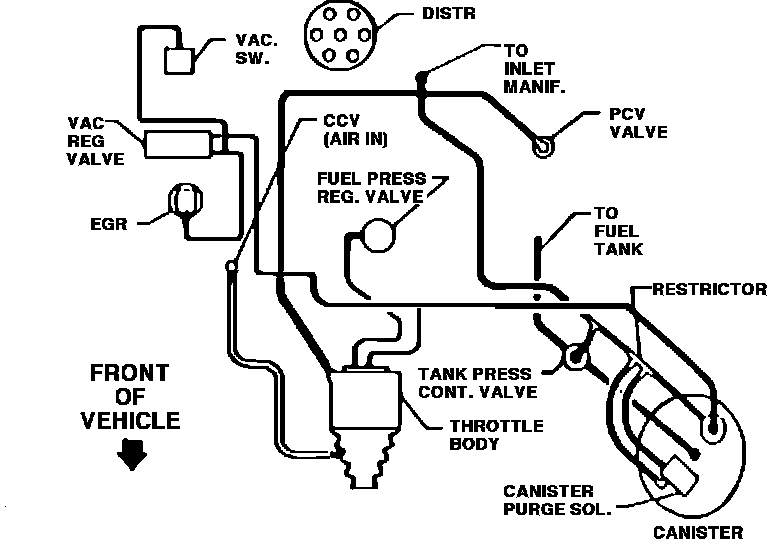

With Automatic Transmission:

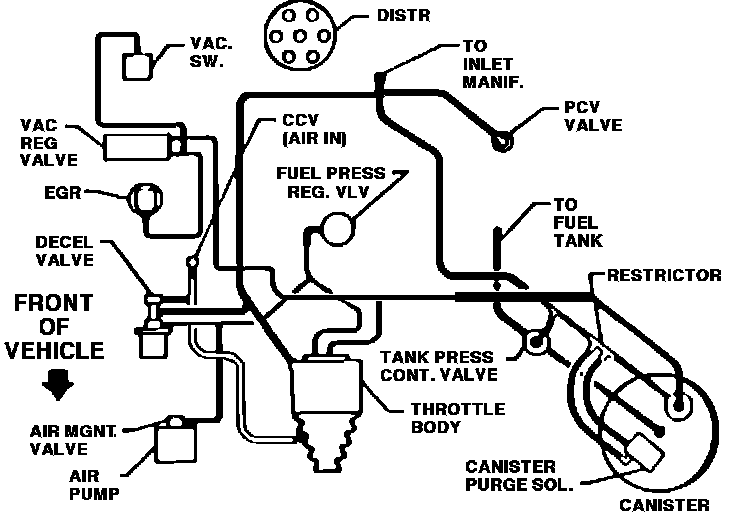

With Manual Transmission:
