Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1989
>>
Camaro V6-173 2.8L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
Charging System

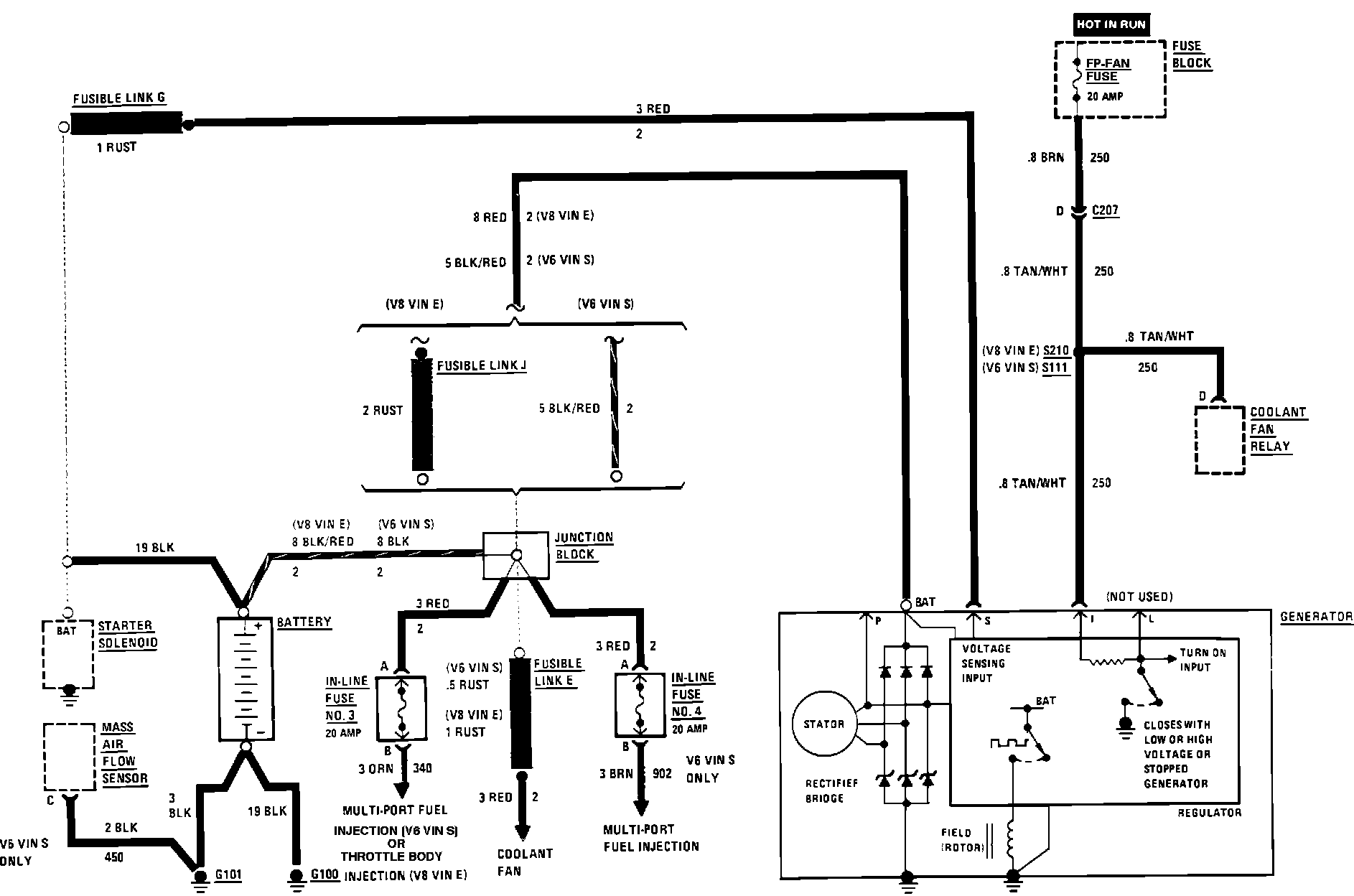

Charging System (VINS E & S):
