Powertrain Controls

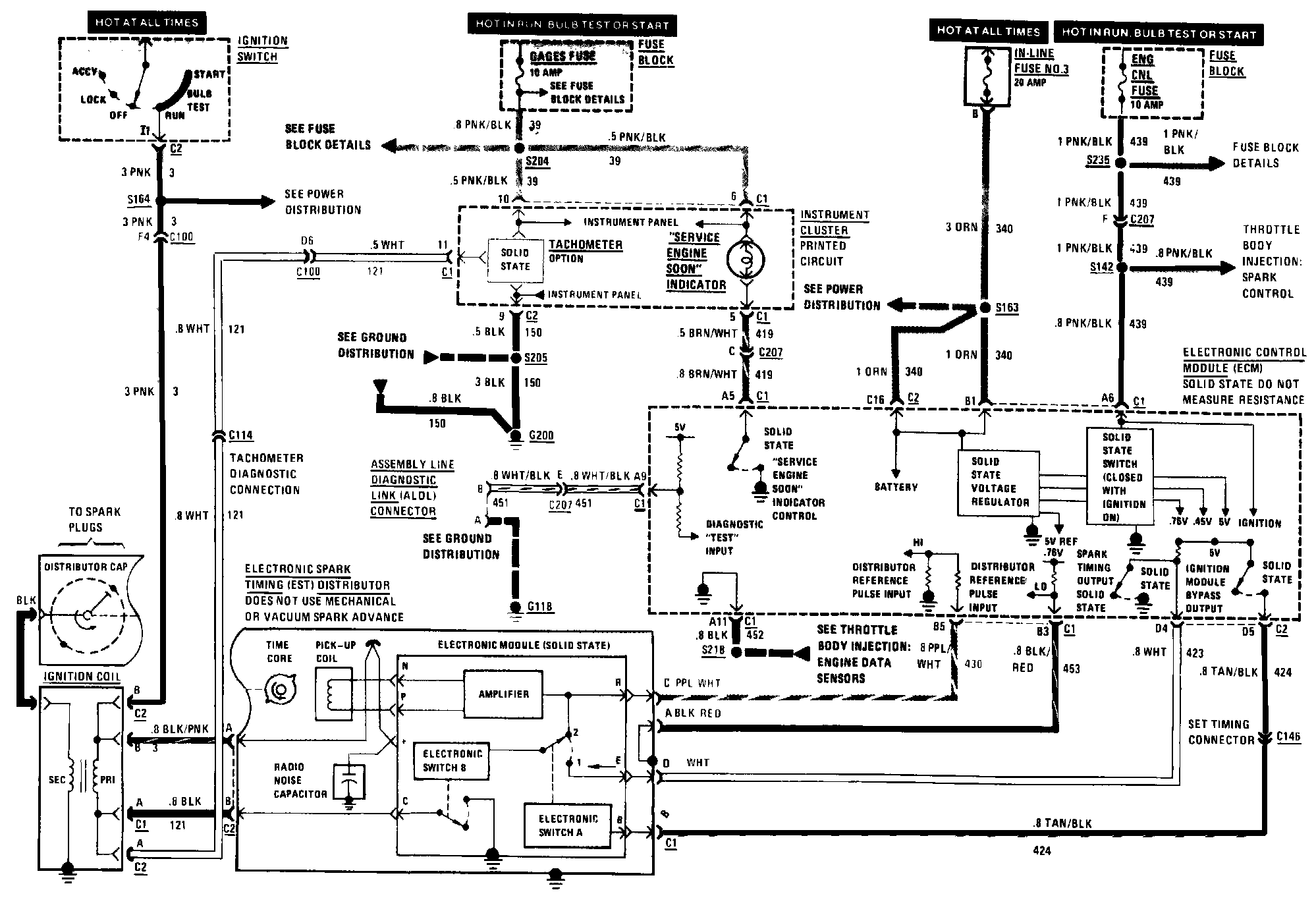

Ignition, Service Engine Soon Indicator And Tachometer:

Upshift Indicator:

Part 1 Idle Speed Control, Fuel Control And Vehicle Data Sensors:

Part 2 Idle Speed Control, Fuel Control And Vehicle Data Sensors:

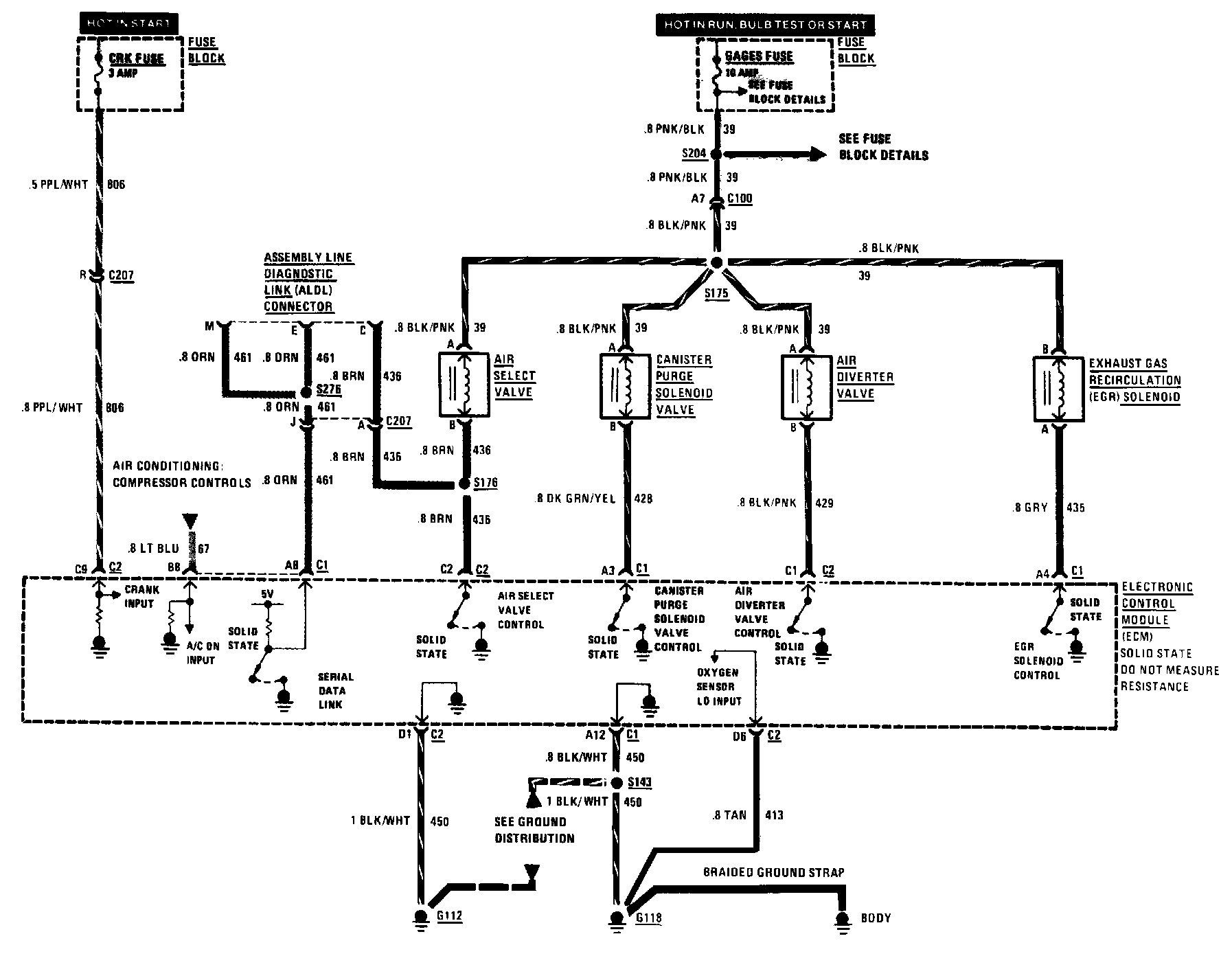

Emission Controls:

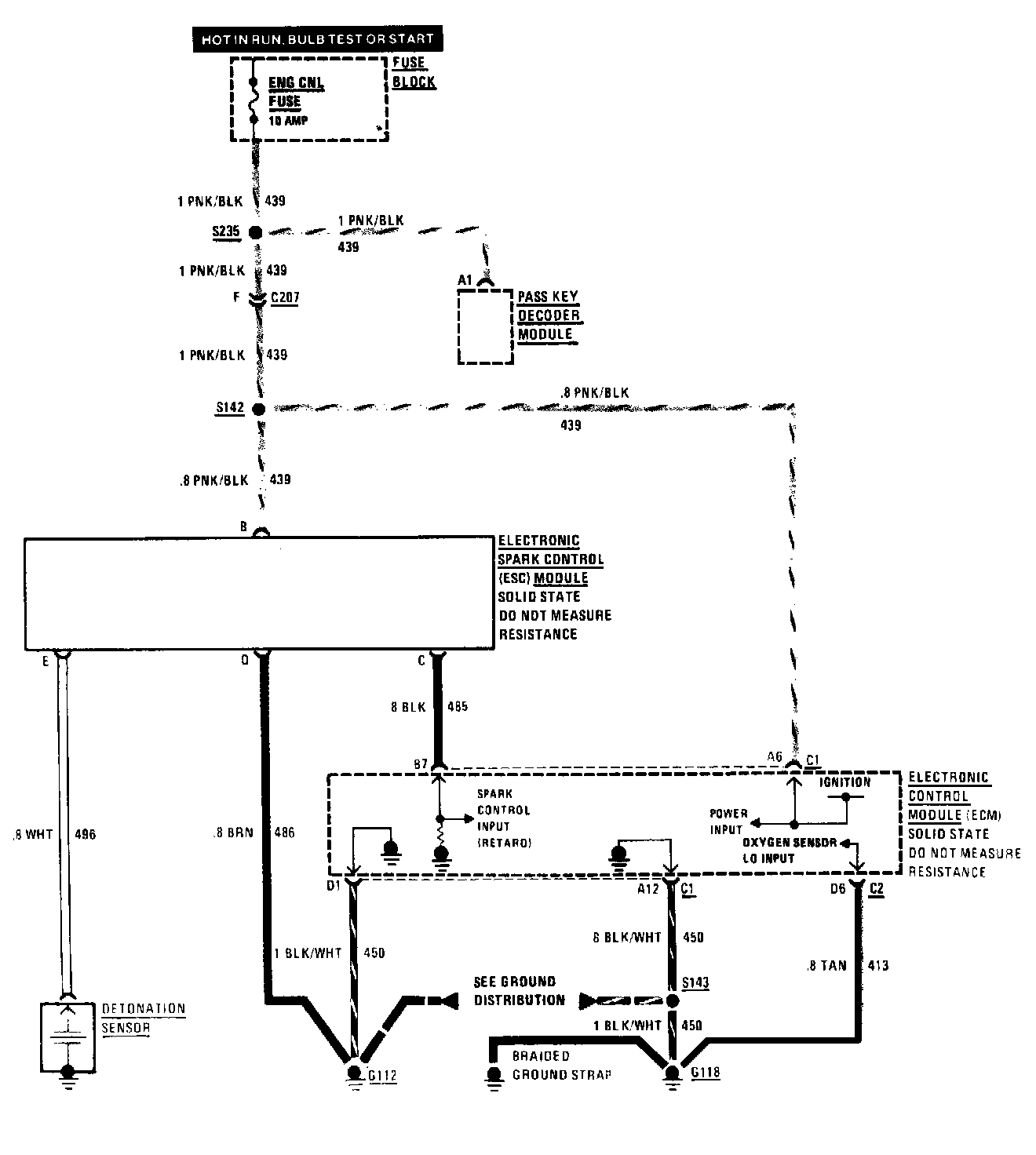

Spark Control:

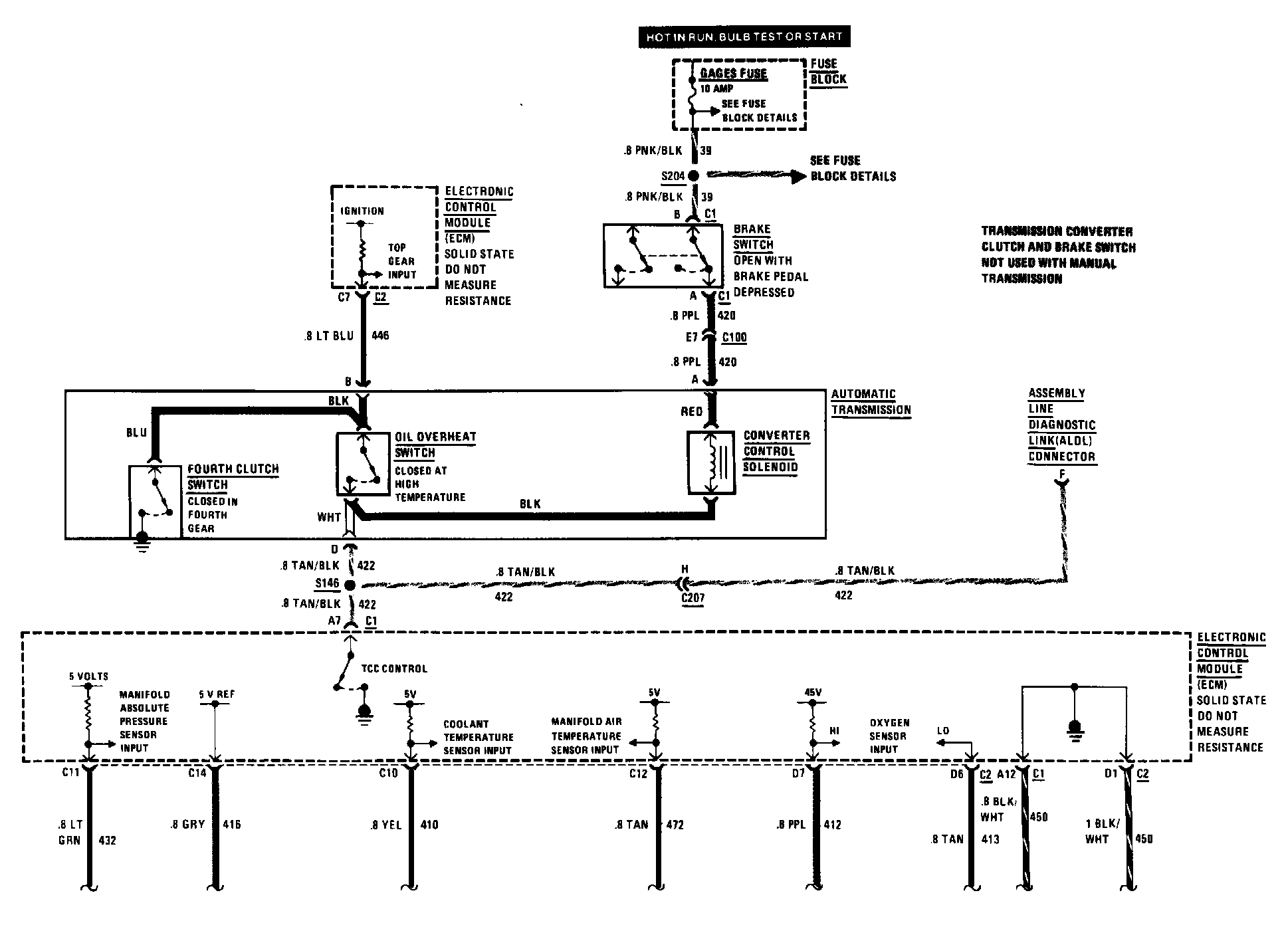

Part 1 Engine Data Sensors And Transmission Converter Clutch:

Part 2 Engine Data Sensors And Transmission Converter Clutch:

Fuel Injectors:
