Home >> Chevrolet >> 1989 >> Camaro V8-305 5.0L VIN E TBI >> Repair and Diagnosis >> Starting and Charging >> Diagrams >> Electrical Diagrams >> Starting System

Starting System

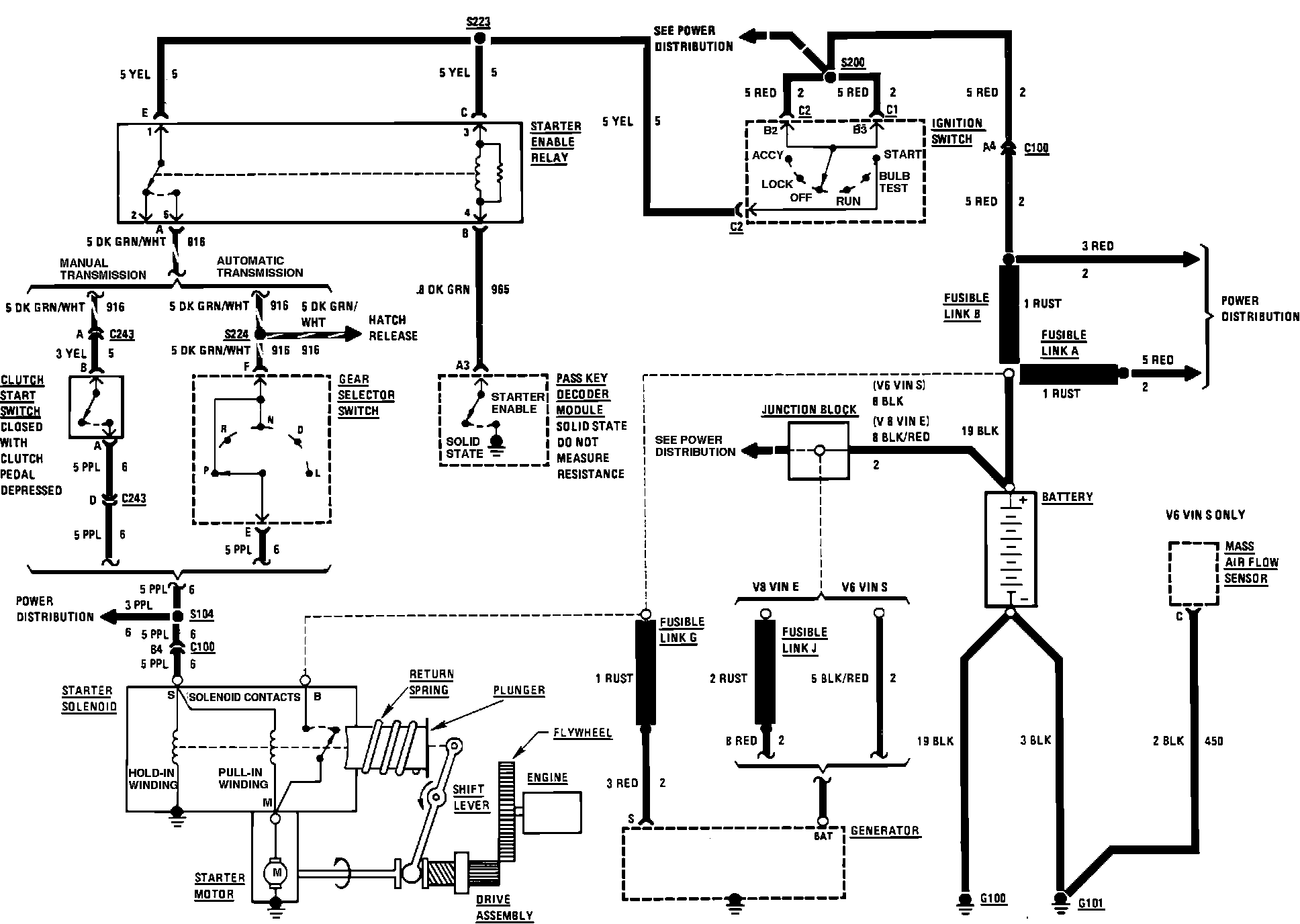

Starter System VIN E:
