Home
>>
Chevrolet
>>
1989
>>
Camaro V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Pulse
Pulse

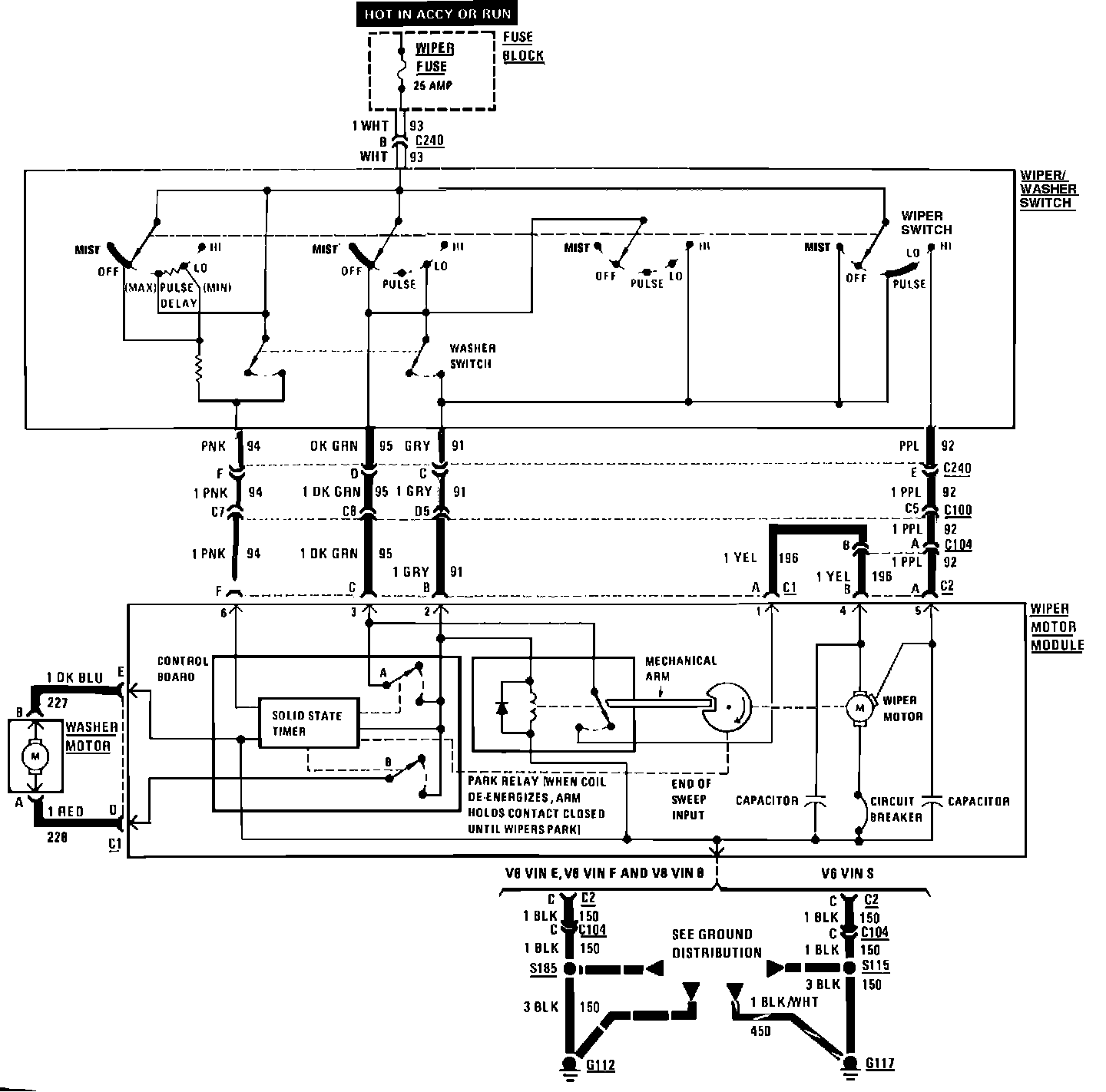

Windshield Wiper/Washer (W/Pulse):
