Idle Speed Control, Fuel Control & Vehicle Data Sensors

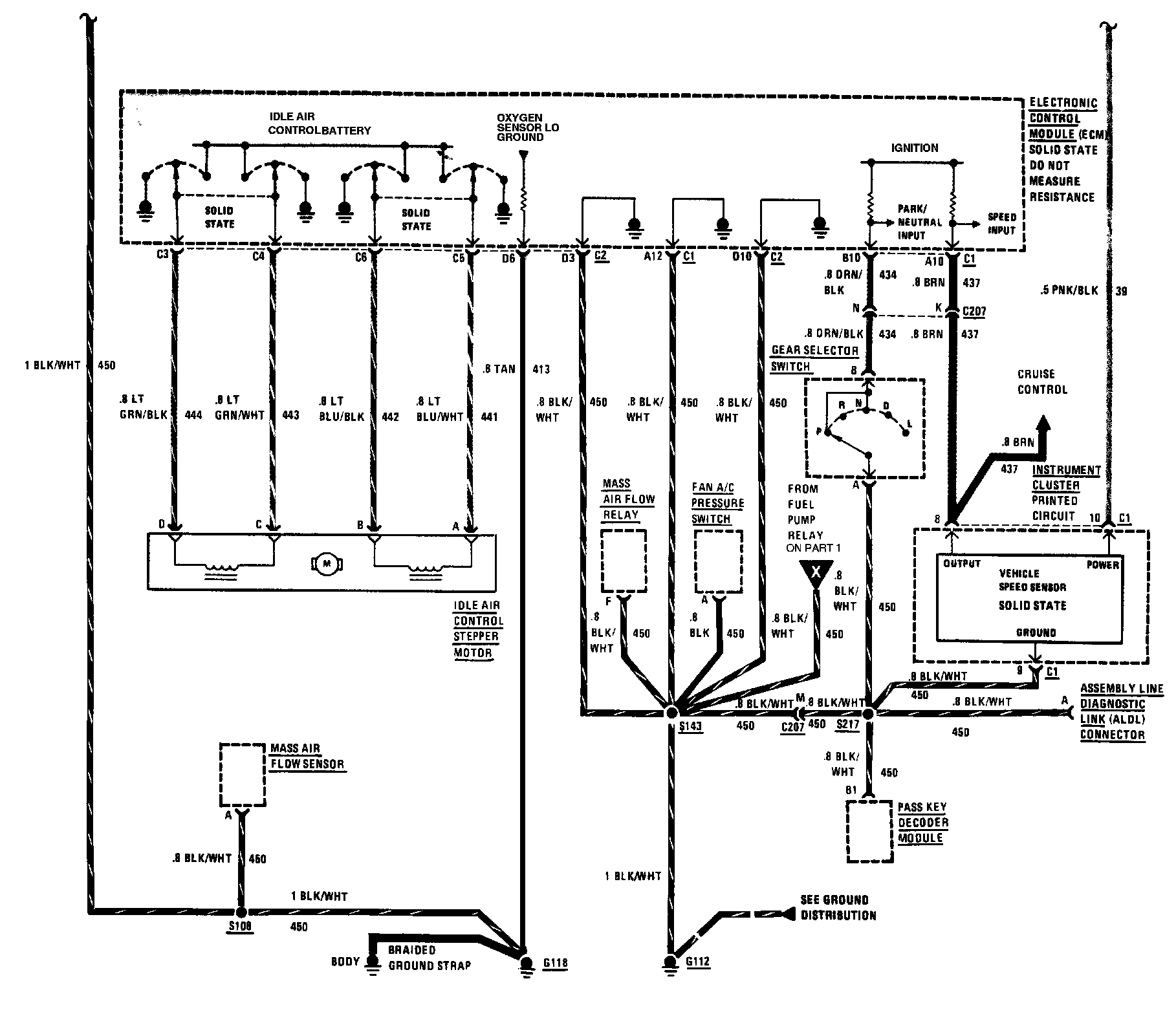

Part 1 Idle Speed Control, Fuel Control And Vehicle Data Sensors:



Part 2 Idle Speed Control, Fuel Control And Vehicle Data Sensors:
