Home >> Chevrolet >> 1989 >> Caprice V6-262 4.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heated Glass Element >> Rear Defogger (Sedan)

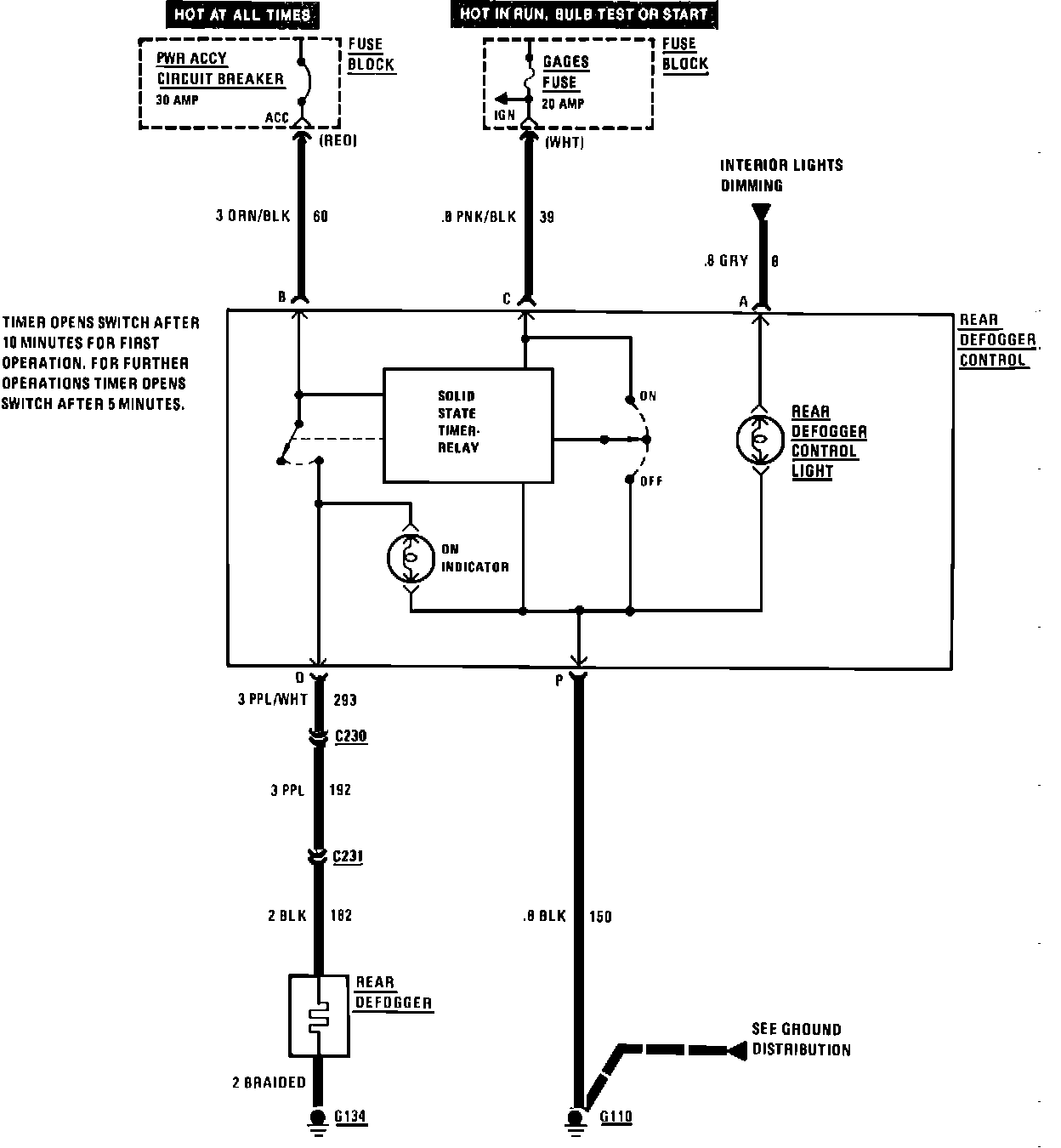

Rear Defogger (Sedan)

Rear Defogger:
