System Diagnostic Charts - Cycling Clutch Orifice Tube (CCOT)
>>
Chart D - C.C.O.T. System
Chart D - C.C.O.T. System

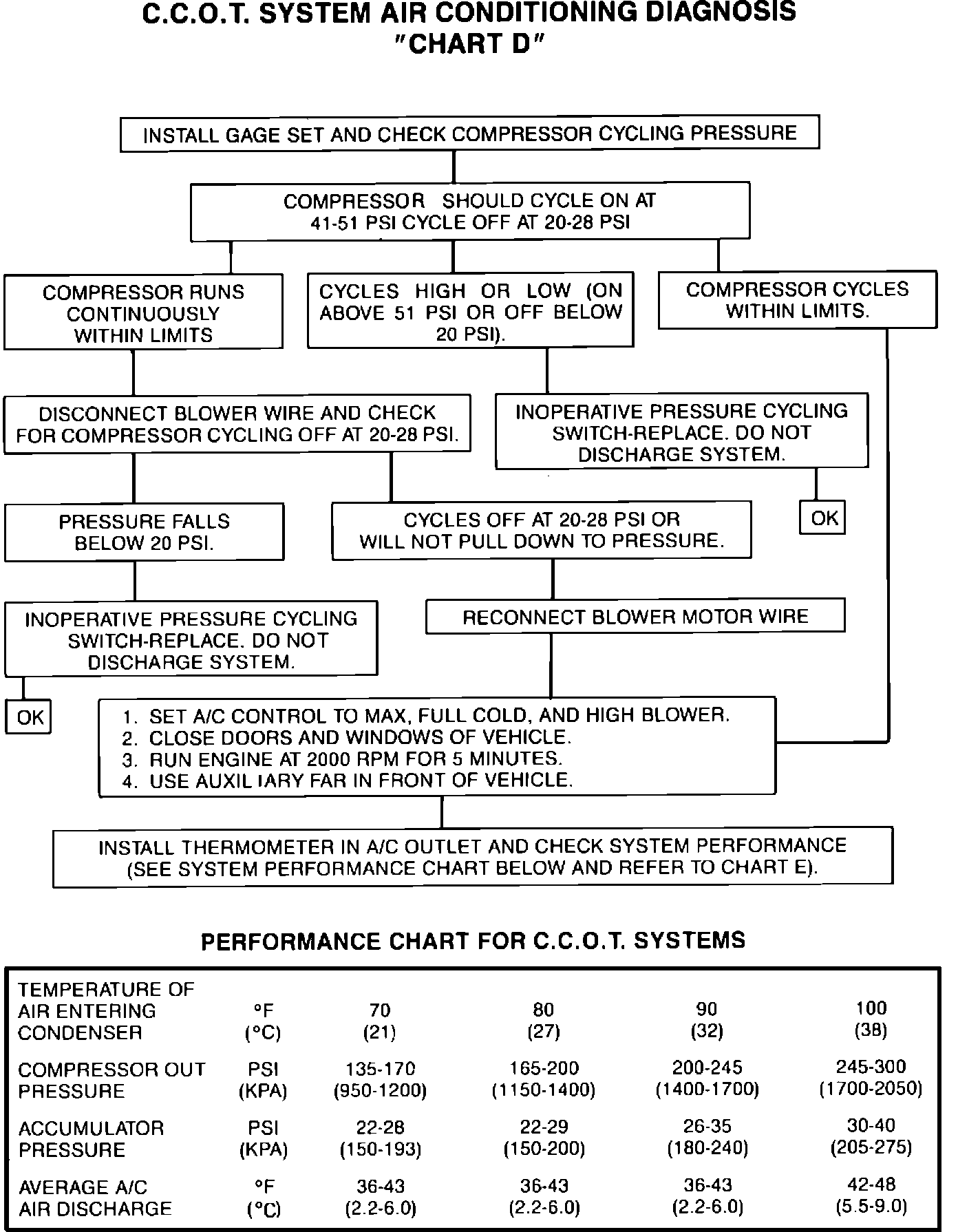

Fig. 21d A/C cooling system diagnosis (Part 4 of 5). Models w/CCOT system:
