Backup Lamp
>>
With Digital & Gauge Cluster
With Digital & Gauge Cluster

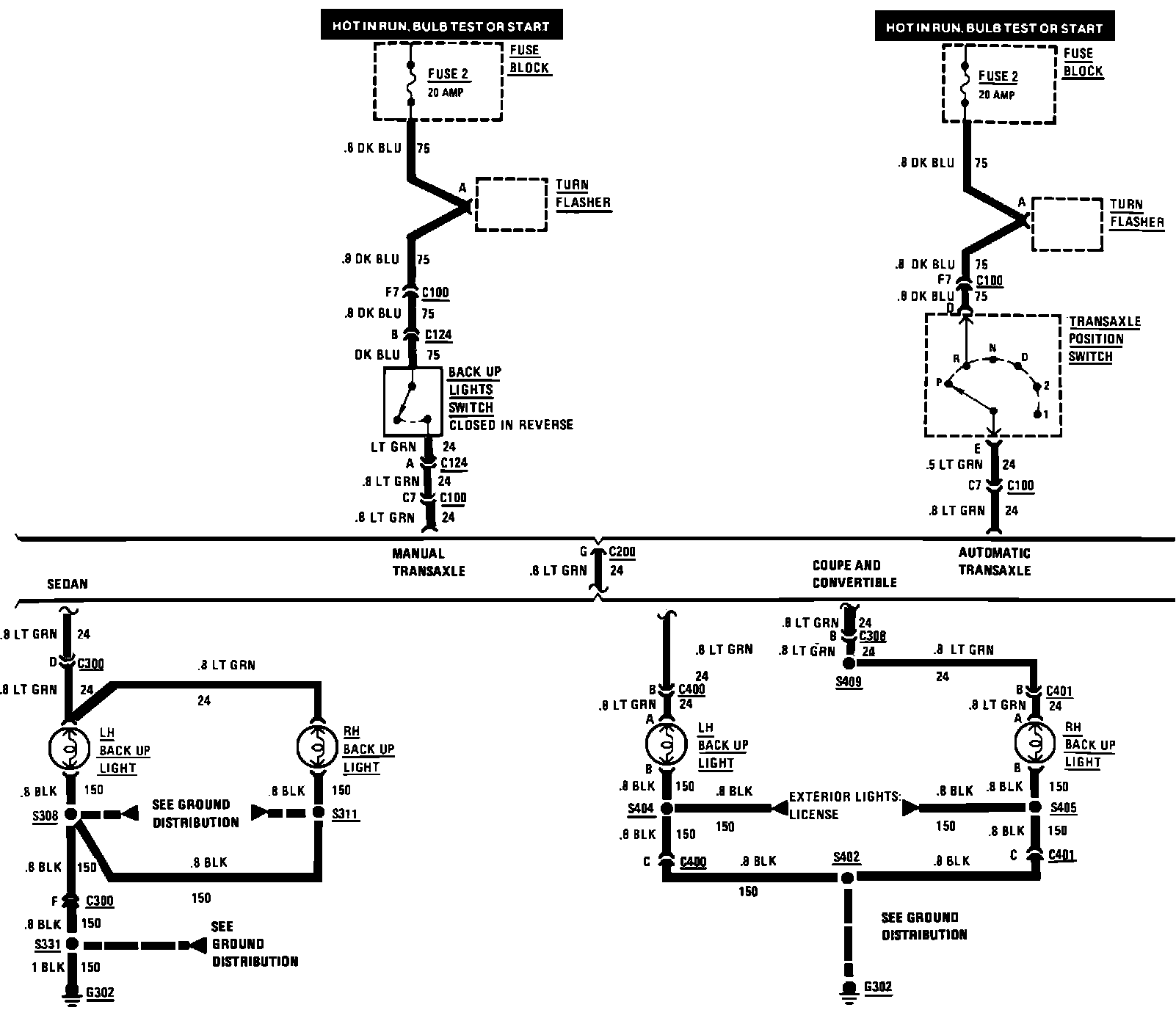

Back-Up Lamps (W/Digital & Gauge Cluster):
