Home
>>
Chevrolet
>>
1989
>>
Cavalier/Z24 V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

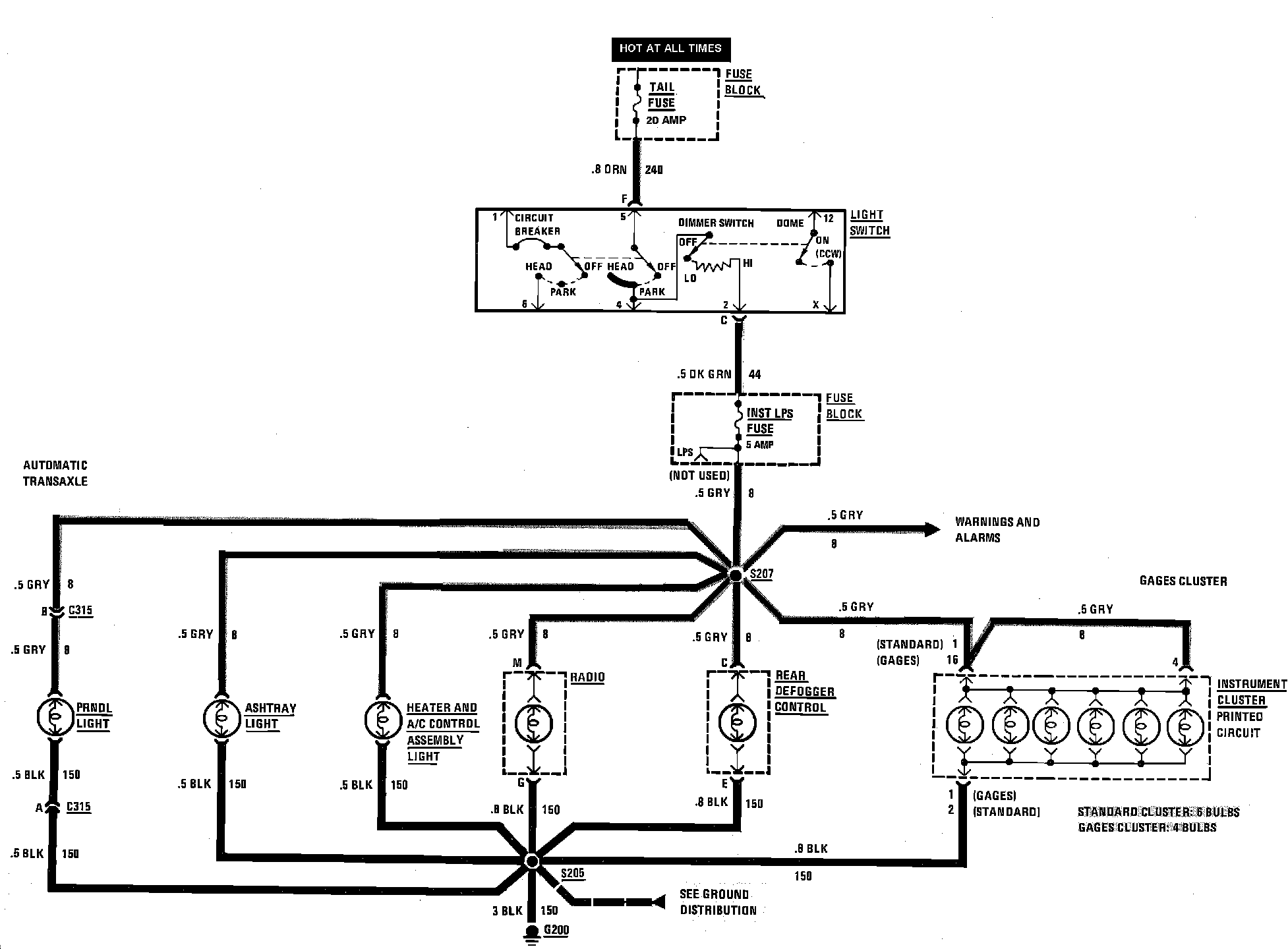

Dimmer Switch
>>
W/Standard Cluster
W/Standard Cluster
Dimming - Exc. RS & Z24:
