Home >> Chevrolet >> 1989 >> Cavalier/Z24 V6-173 2.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Hazard Warning Lamps >> W/Standard Cluster

W/Standard Cluster

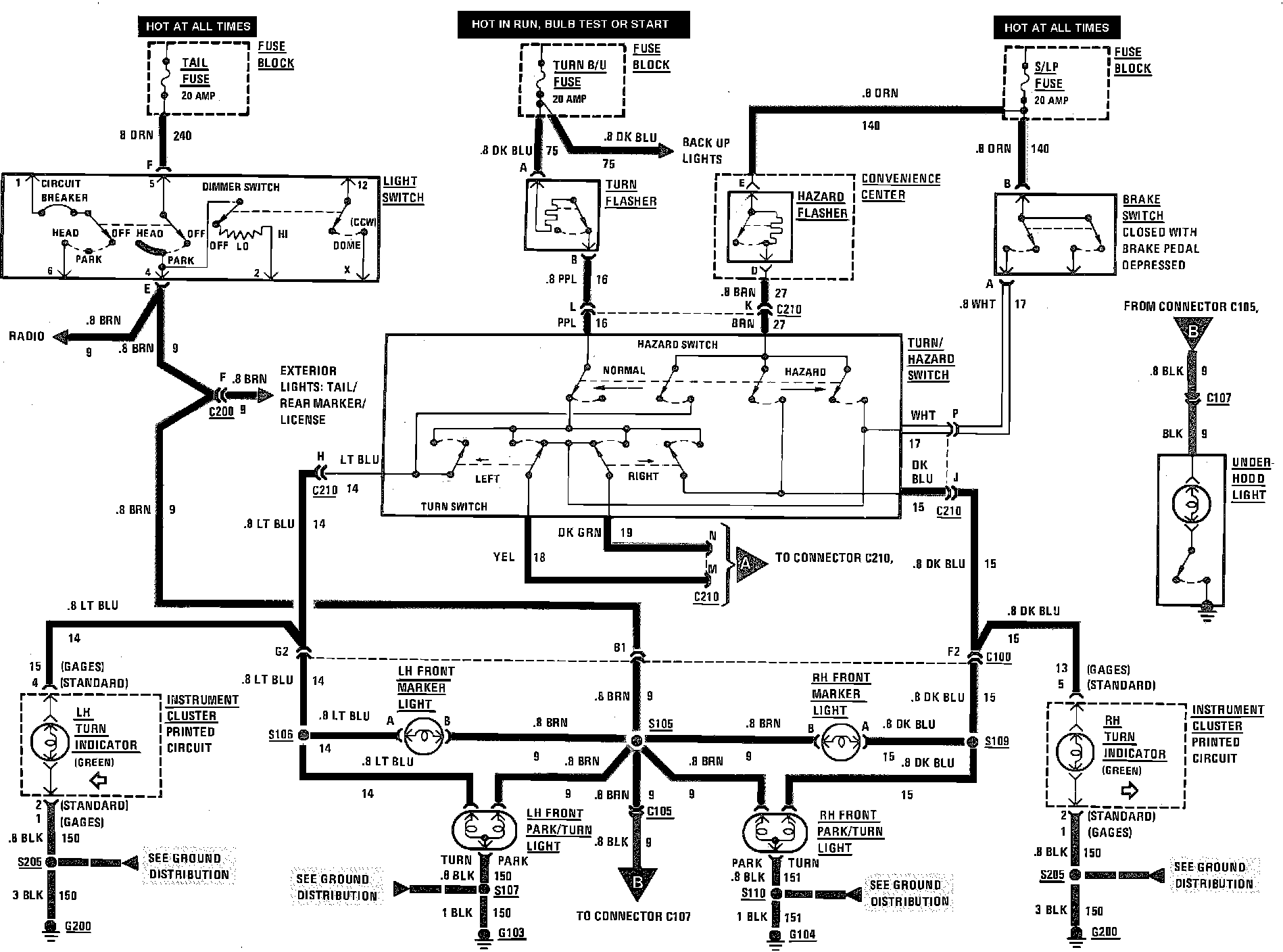

Turn, Hazard, Front Park & Front Marker - Exc. RS & Z24:
