Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1989
>>
Cavalier/Z24 V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

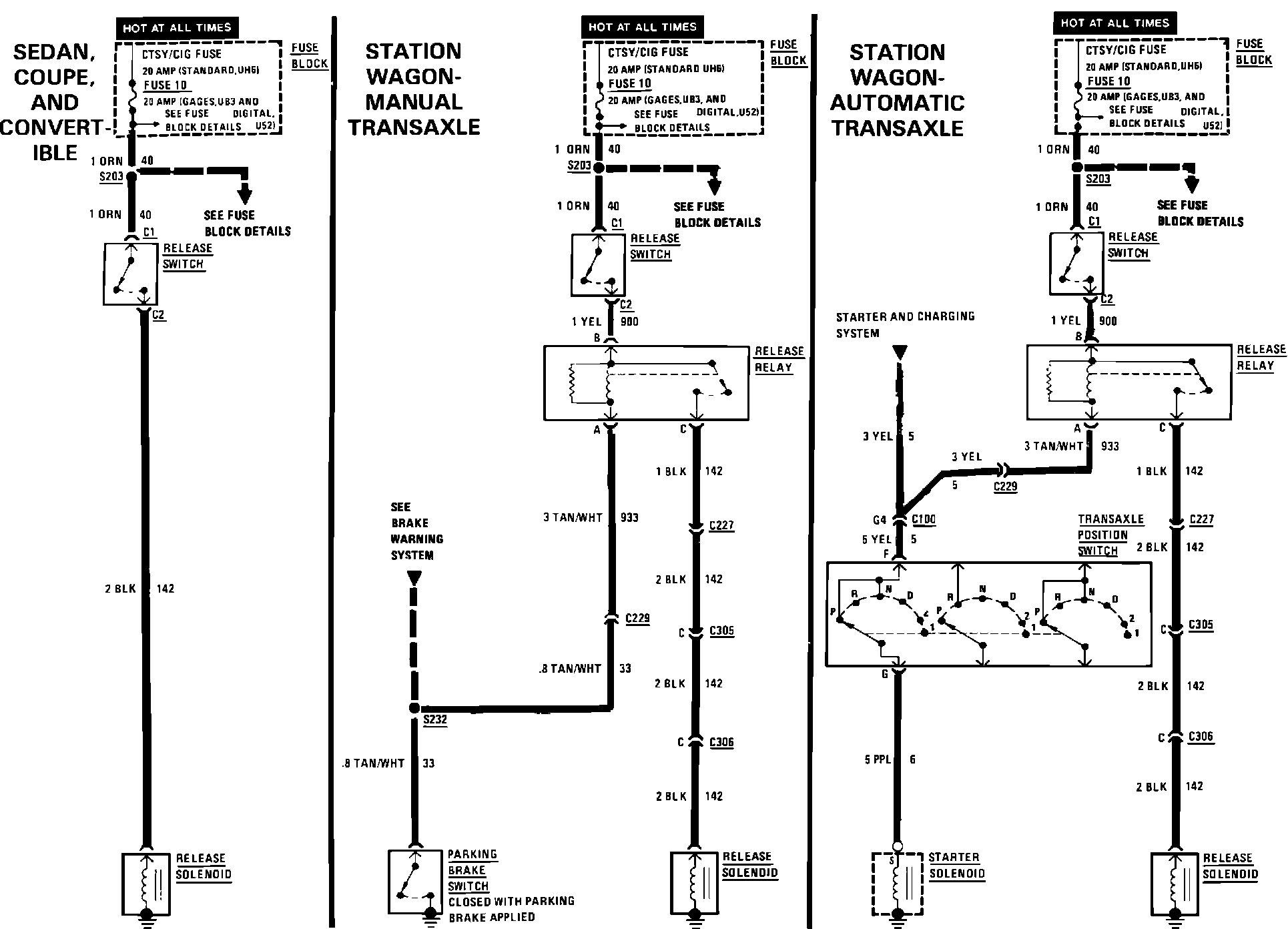

Power Trunk / Liftgate Lock Actuator
Power Trunk / Liftgate Lock Actuator
Luggage Compartment Lid & Tailgate Release:
