Tail Lamp
>>
Convertible
Convertible

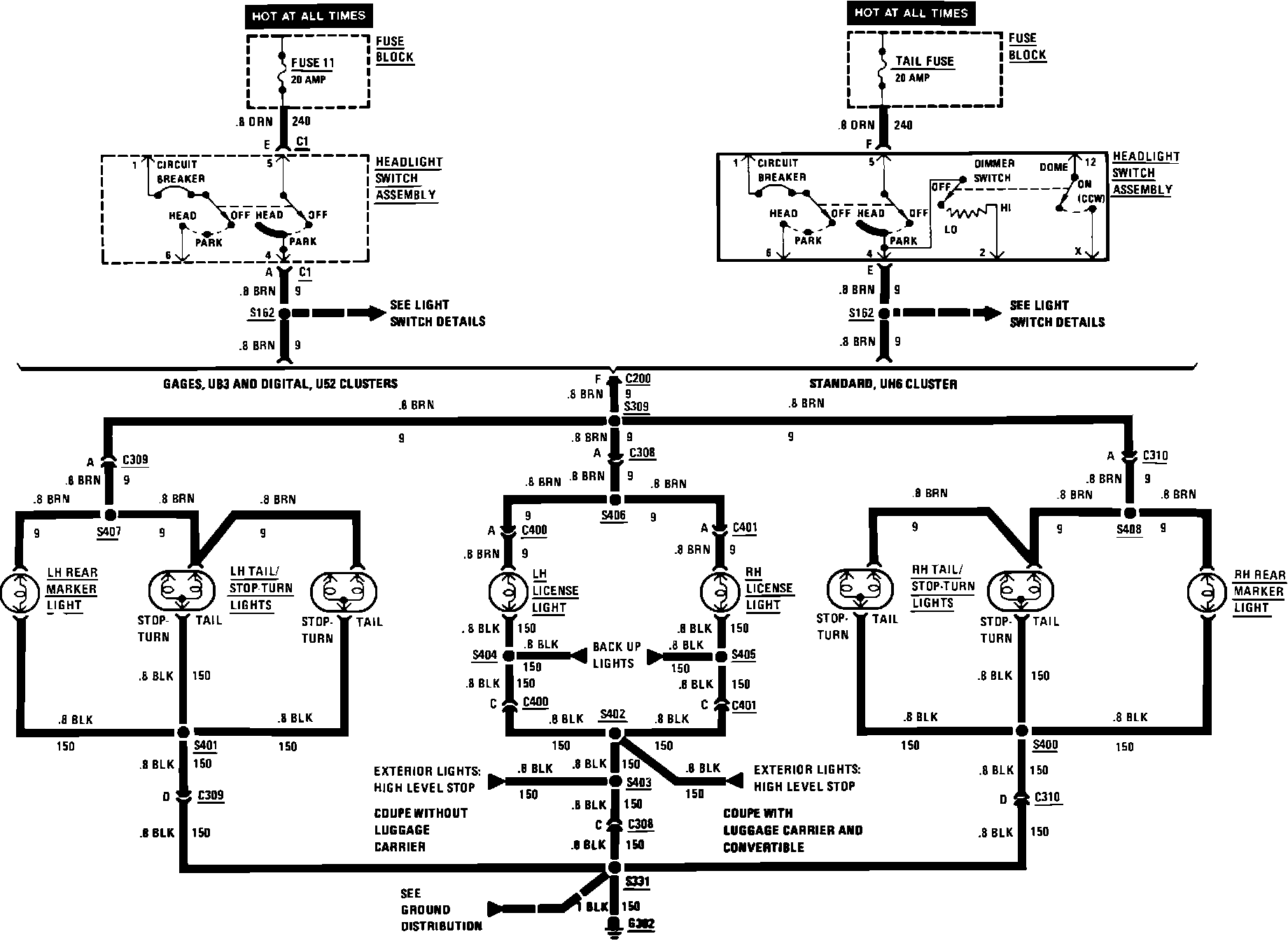

Exterior Lamps (License, Rear Marker & Tail) Convertible & Coupe:
