Cavalier/Z24 V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Fuse and Fusible Links
>>

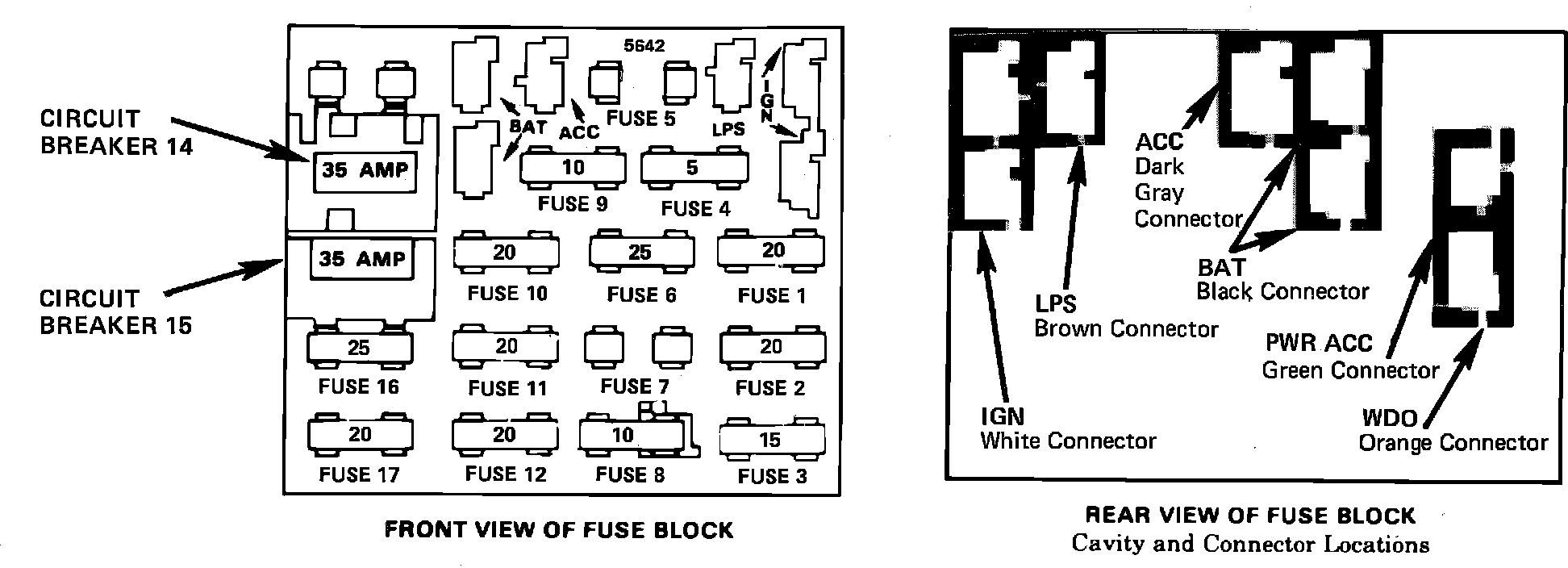

Fuse Block Details
>>
W/Digital & Gauge Cluster
W/Digital & Gauge Cluster
Fuse Panel:
