Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1989
>>
Cavalier/Z24 V6-173 2.8L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Refrigerant Pressure Sensor / Switch
>>
Locations
>>
A/C Low Pressure Cut-Out Switch
A/C Low Pressure Cut-Out Switch

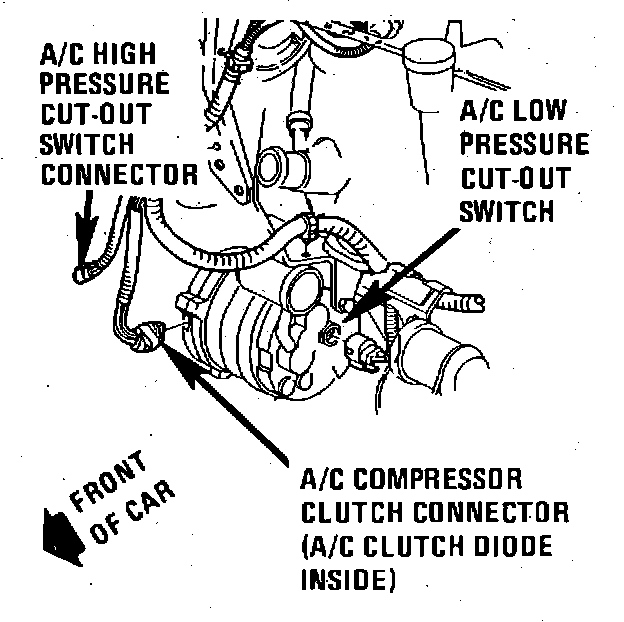

Rear Of A/C Compressor:
RH Front Of Engine

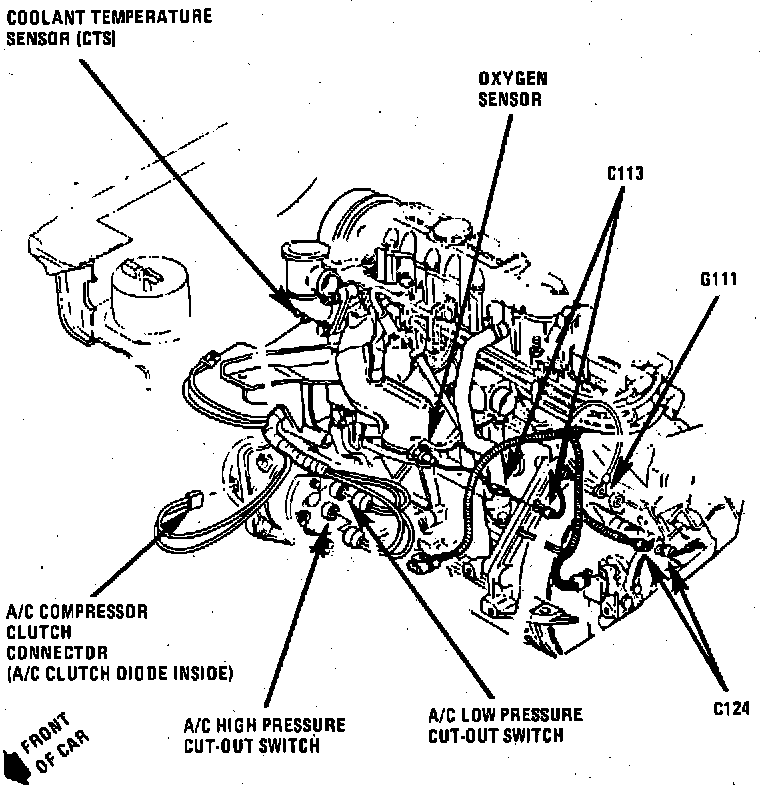

Front Of Engine.:
RH Front Of Engine
Applicable to: 4-121/2.0L
