Home >> Chevrolet >> 1989 >> Cavalier/Z24 V6-173 2.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> Front Lamp Grounds

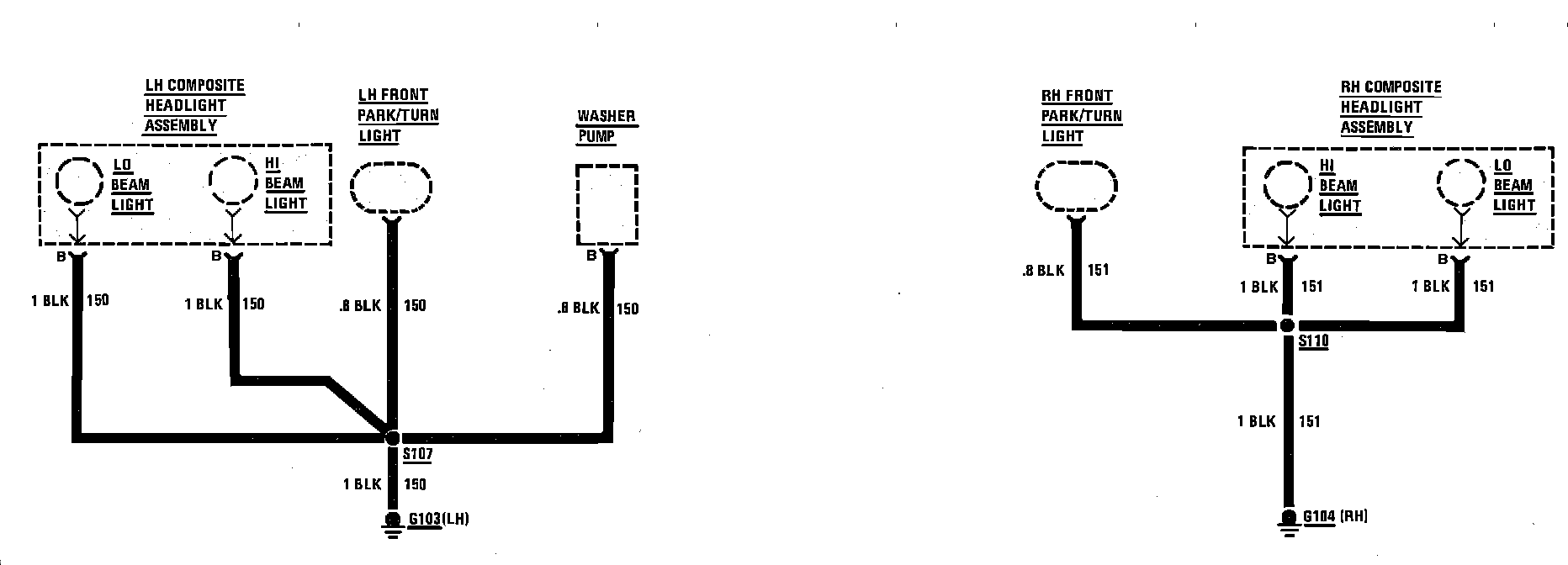

Front Lamp Grounds

G103 & G104:
