Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1989
>>
Cavalier/Z24 V6-173 2.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Fuel Control & Delivery
Fuel Control & Delivery

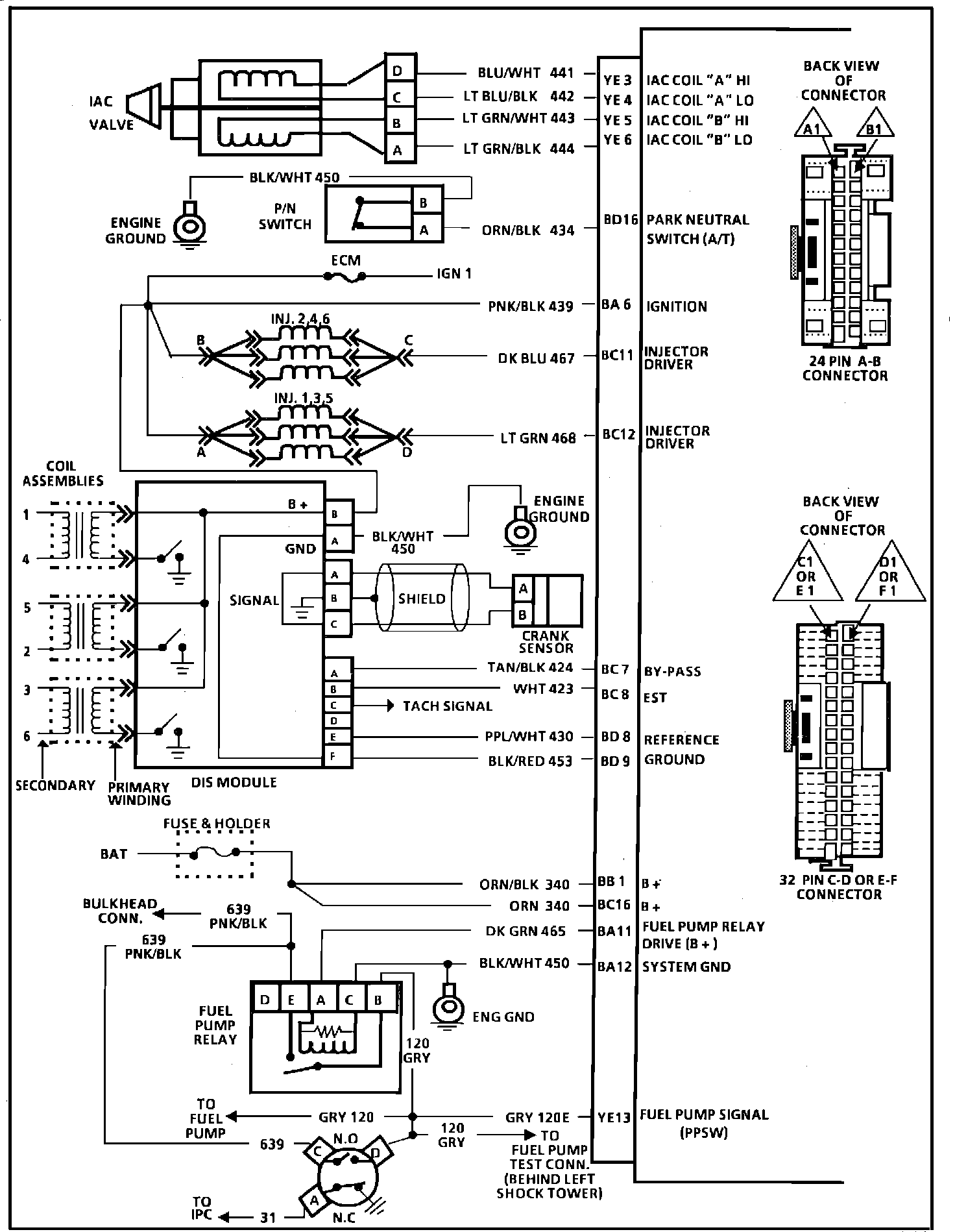

ECM Wiring Diagram:
