Drive Belt: Adjustments

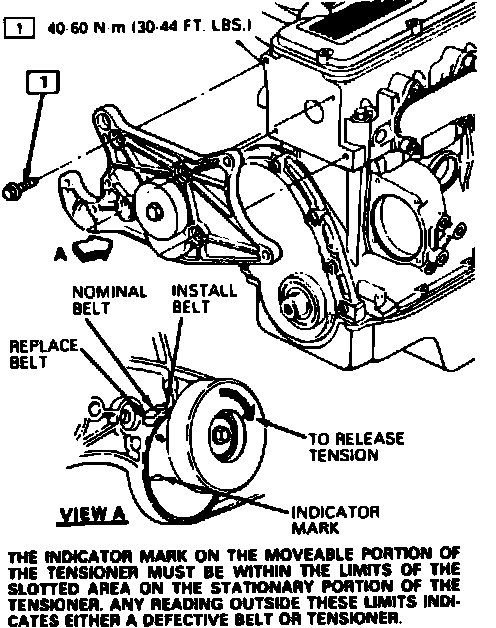

Fig. 14 Belt Tensioner Operating Range:

Belt tension is maintained by a spring loaded belt tensioner. To remove or install drive belt, rotate tensioner with a 15 mm socket. If belt tension is not satisfactory, ensure belt tensioner is within operating limits, Fig. 14. If belt tensioner is allowed to operate outside its operating limits, damage to belt tensioner may result.
