Symptom Related Diagnostic Procedures

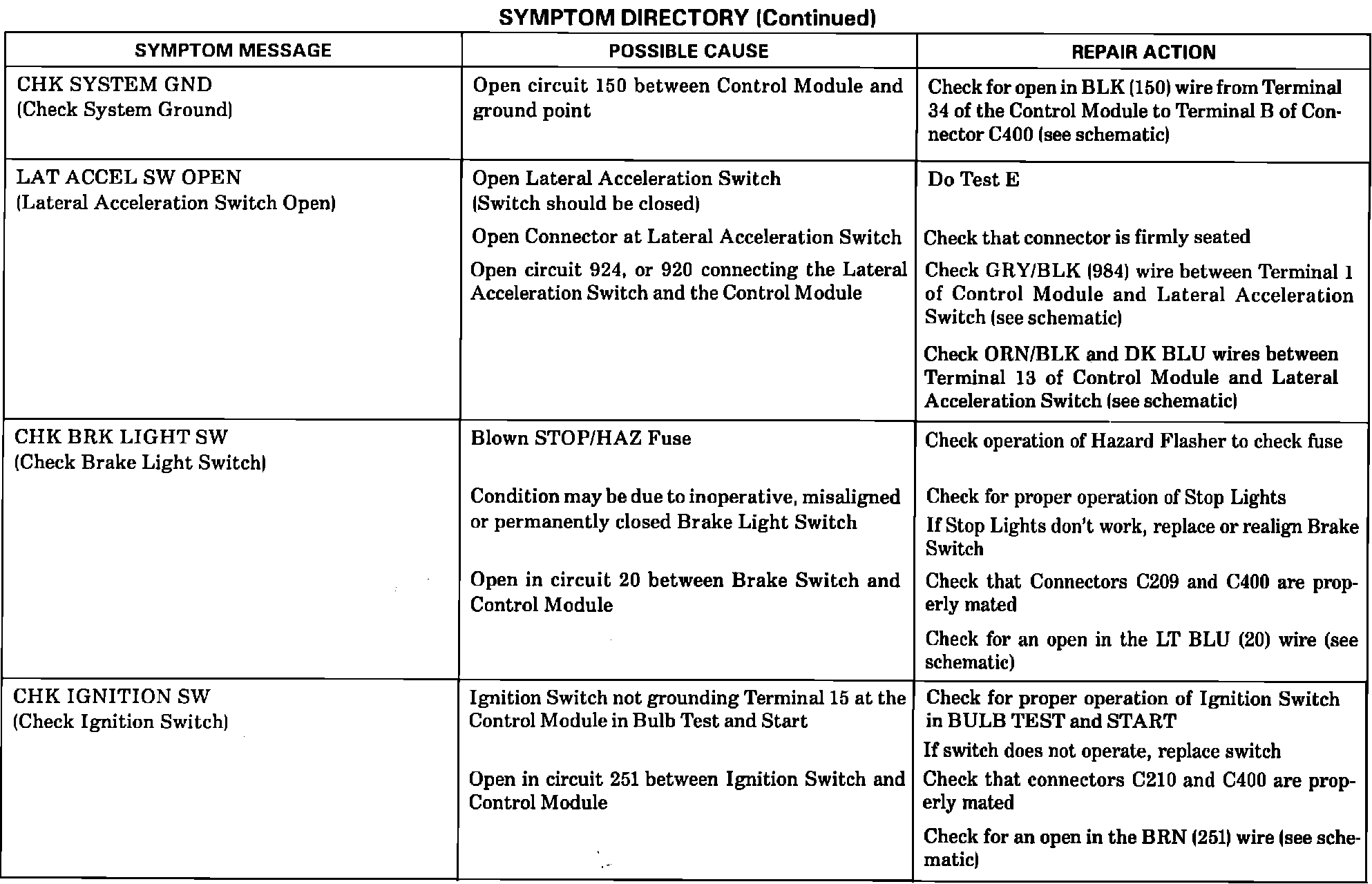

Fig. 8 Anti-lock System Symptom Directory Chart (Part 1 Of 4).:

Fig. 8 Anti-lock System Symptom Directory Chart (Part 2 Of 4).:

Fig. 8 Anti-lock System Symptom Directory Chart (Part 3 Of 4).:

Fig. 8 Anti-lock System Symptom Directory Chart (Part 4 Of 4).:
