Part 1 of 2

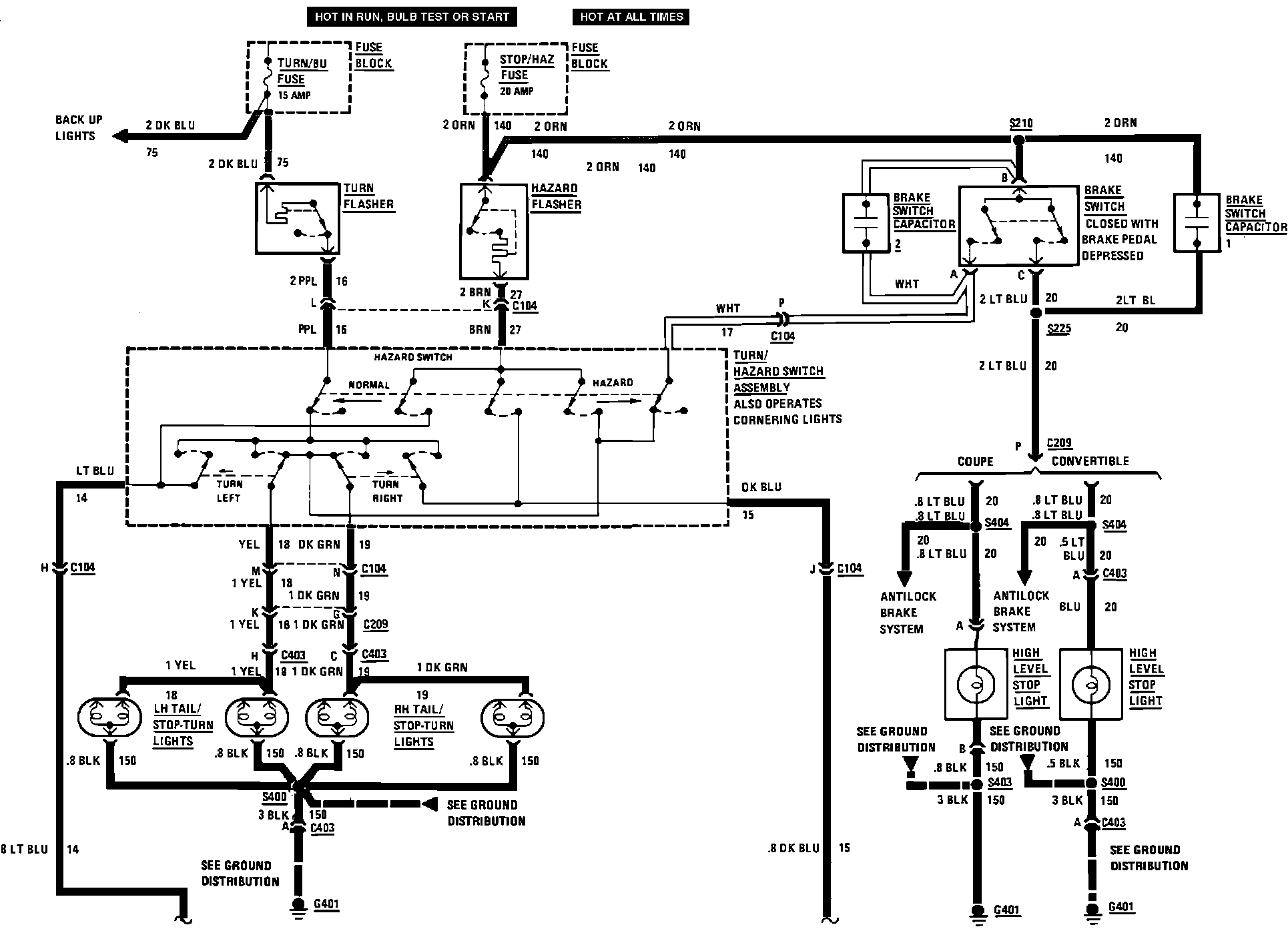

Exterior Lights (Front Marker, Hazard, Stop & Turn):



Exterior Lights (Front Marker, Hazard, Stop & Turn):
