System Diagram

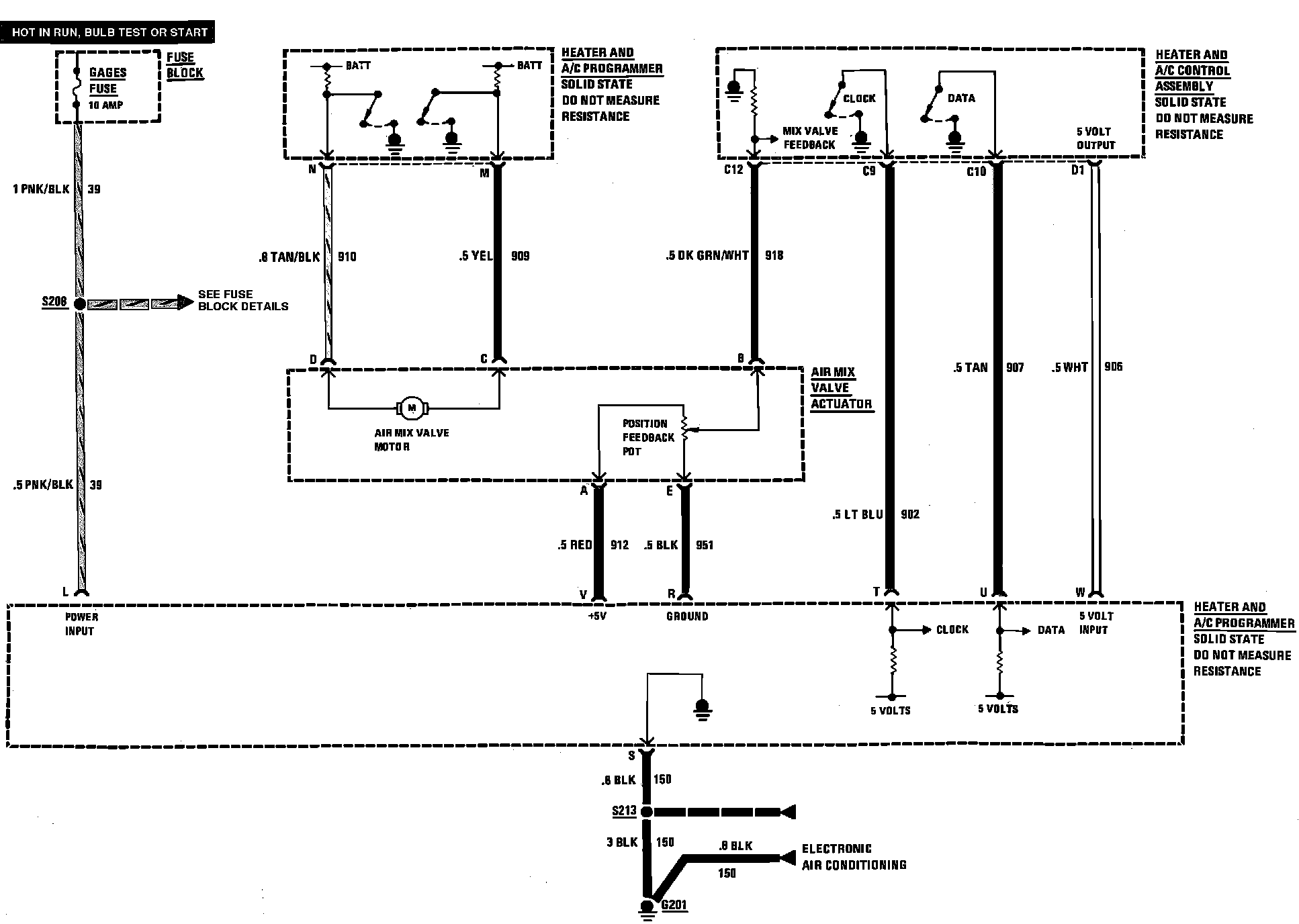

Air Conditioning Temperature Controls (Electronic):

Air Conditioning Temperature Controls (Electronic):
