Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1989
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
With Delco Bose System
With Delco Bose System

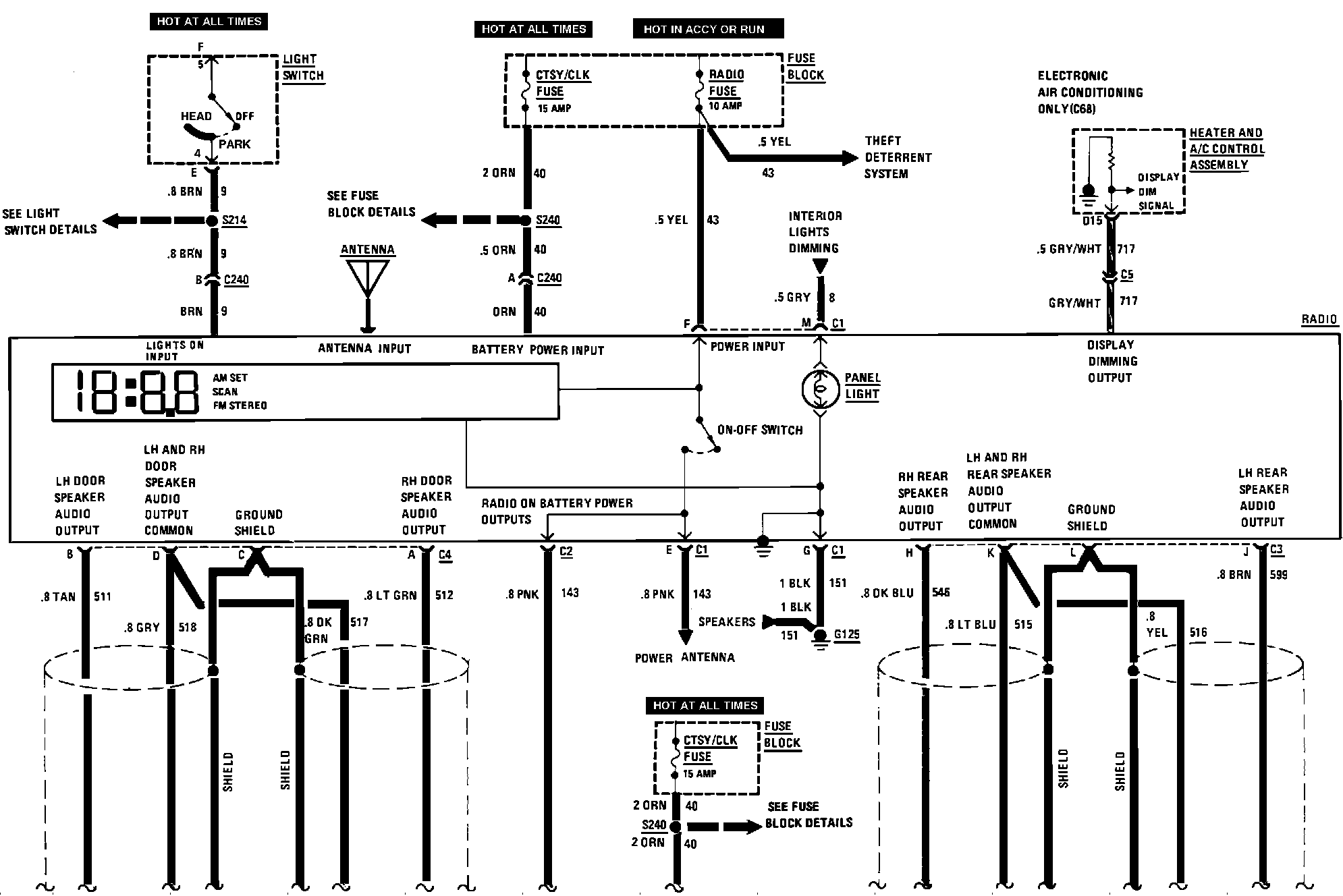

Radio (Delco-Bose):

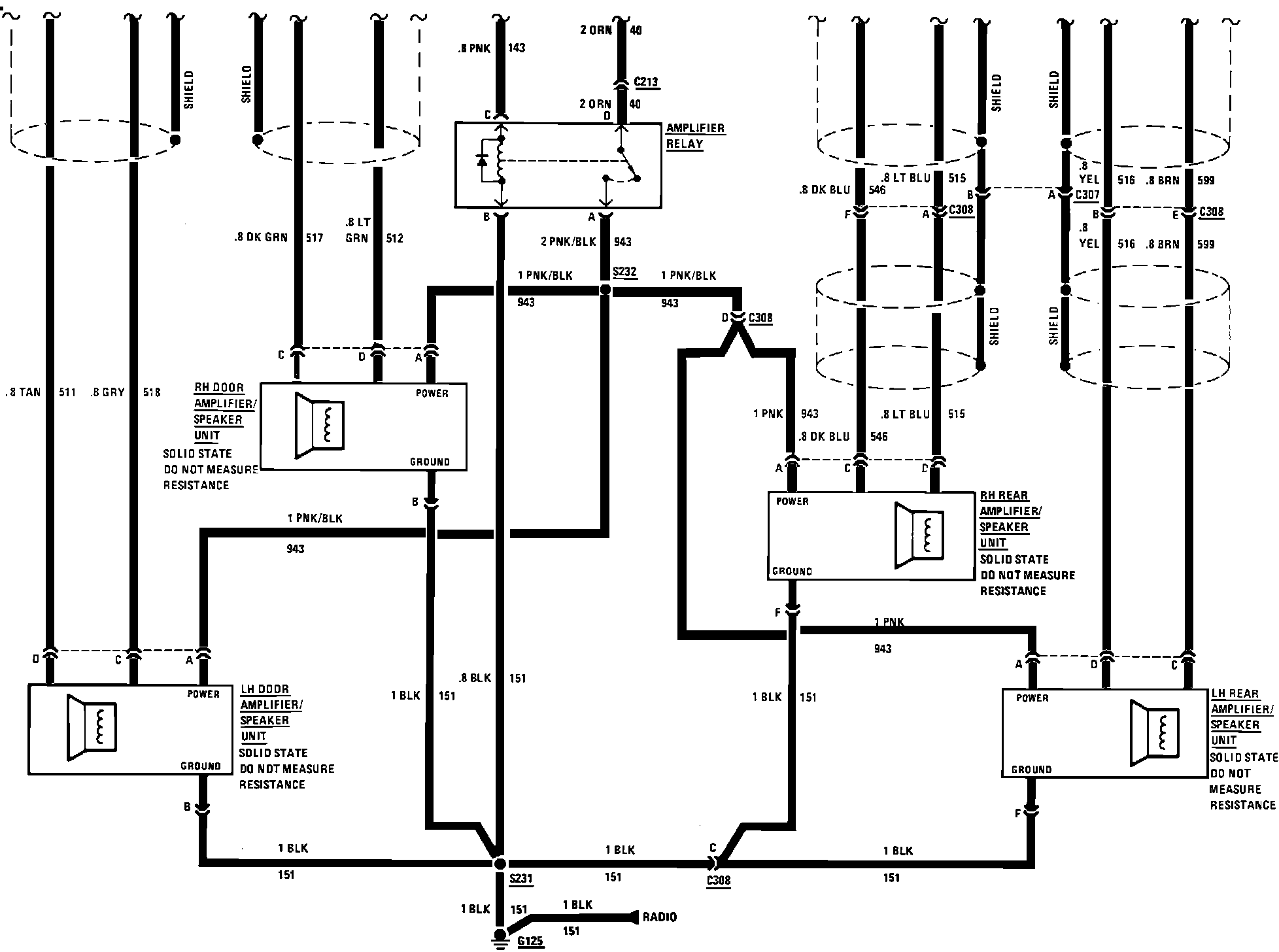

Radio (Delco-Bose):
