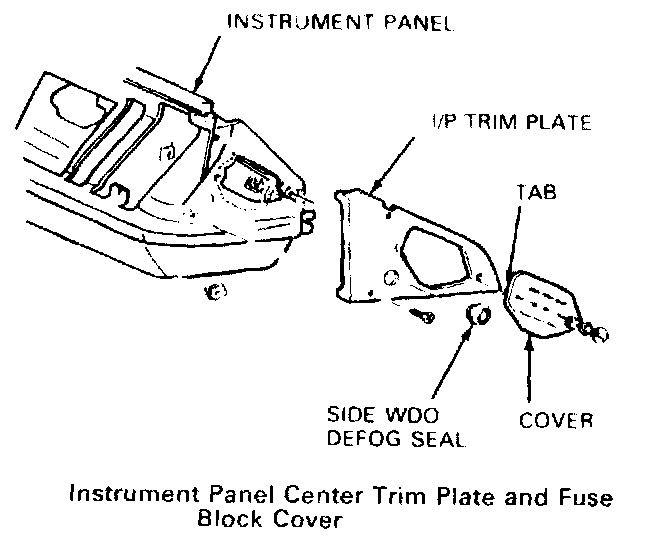

Instrument Panel Center Trim Pad



INSTRUMENT PANEL CENTER TRIM PAD









Remove or Disconnect
1. Negative battery cable
2. Instrument panel upper pad.
3. Brace, duct and flexible hose.
4. Instrument panel right sound insulator.
5. Four instrument panel center trim pad screws and center trim pad.

Install or Connect
1. Instrument panel center trim pad and four screws.
2. Instrument panel right sound insulator.
3. Duct, flex hose and brace.
4. Instrument panel upper pad.
5. Battery negative cable.
