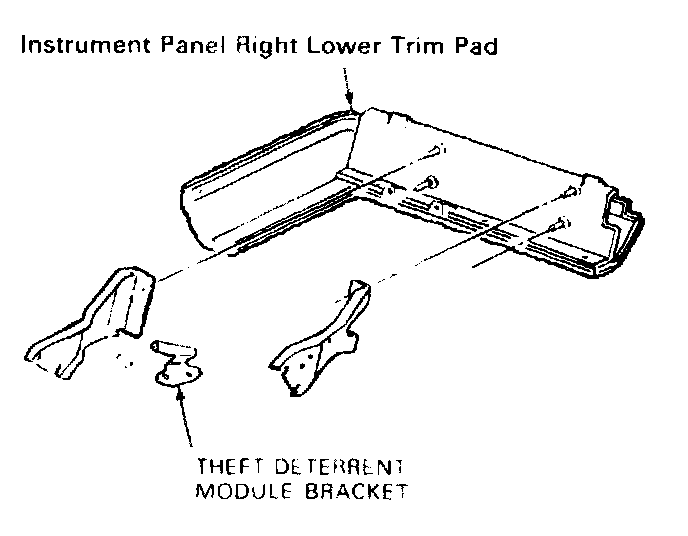

Instrument Panel Right Lower Trim Pad

INSTRUMENT PANEL RIGHT LOWER TRIM PAD









Remove or Disconnect
1. Battery negative cable.
2. Instrument panel upper pad.
3. Instrument panel center trim pad.
4. Four nuts securing instrument panel right lower trim pad to supports and theft deterrent bracket.
5. Three right lower trim pad screws and right lower trim pad.

Install or Connect
1. Right lower instrument panel trim pad and three screws.
2. Theft deterrent bracket and four nuts to secure right lower trim pad and bracket.
3. Instrument panel center trim pad.
4. Instrument panel upper pad.
5. Battery negative cable.
