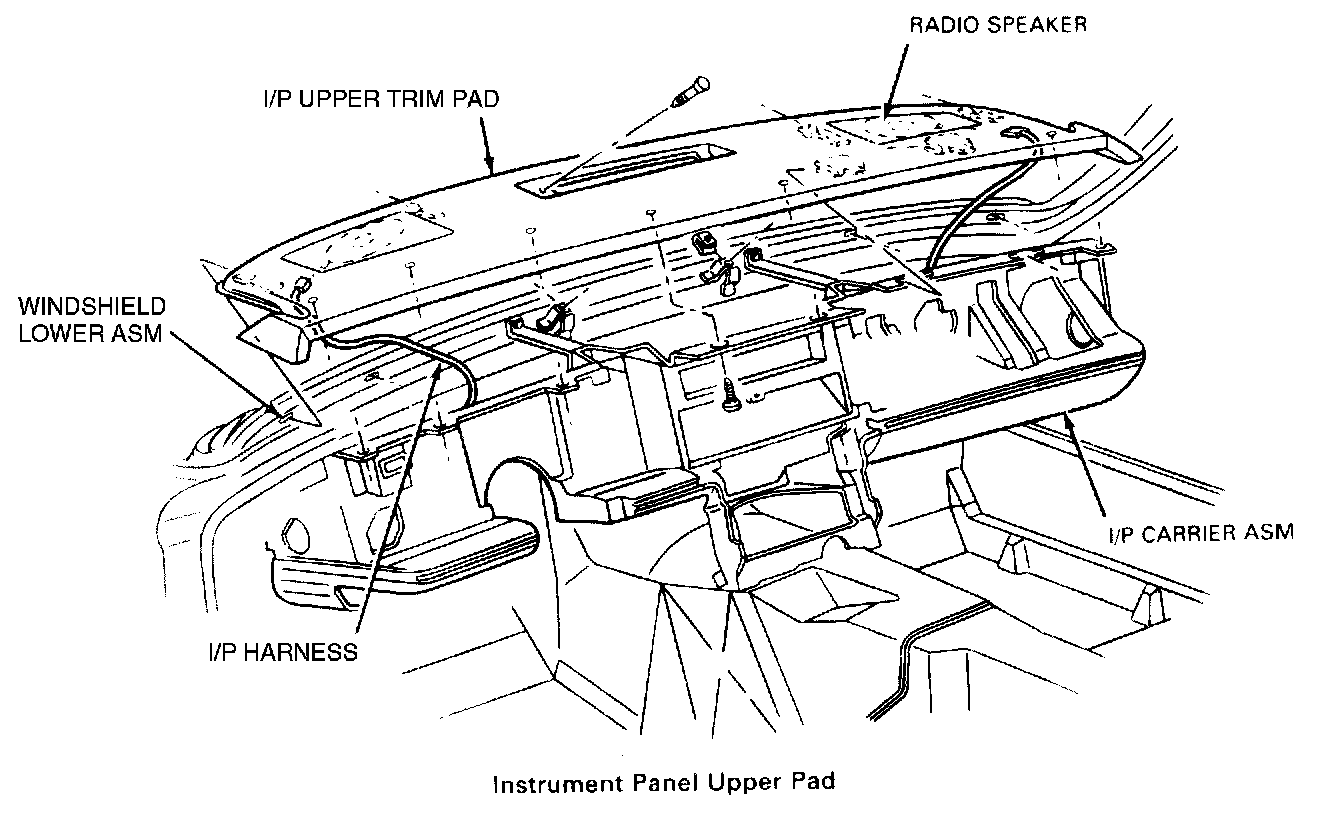

Instrument Panel Upper Pad

INSTRUMENT PANEL UPPER PAD






Remove or Disconnect
1. Battery negative cable.
2. Steering column tilt lever.
3. Headlamp switch knob.
4. Eight instrument panel courtesy trim plate screws and courtesy trim plate.
5. Instrument panel trim plate (fuse).
6. Six screws from instrument panel upper pad.
7. Two screws from defrost duct.
8. Instrument panel upper pad.

Install or Connect
1. Instrument panel upper pad.
2. Two screws to defrost duct.
3. Six screws to instrument panel upper pad.
4. Instrument panel trim plate (fuse).
5. Instrument panel courtesy trim plate and eight screws.
6. Headlamp switch knob.
7. Steering column tilt lever.
8. Battery negative cable.
