Instrument Panel Warning Indicators

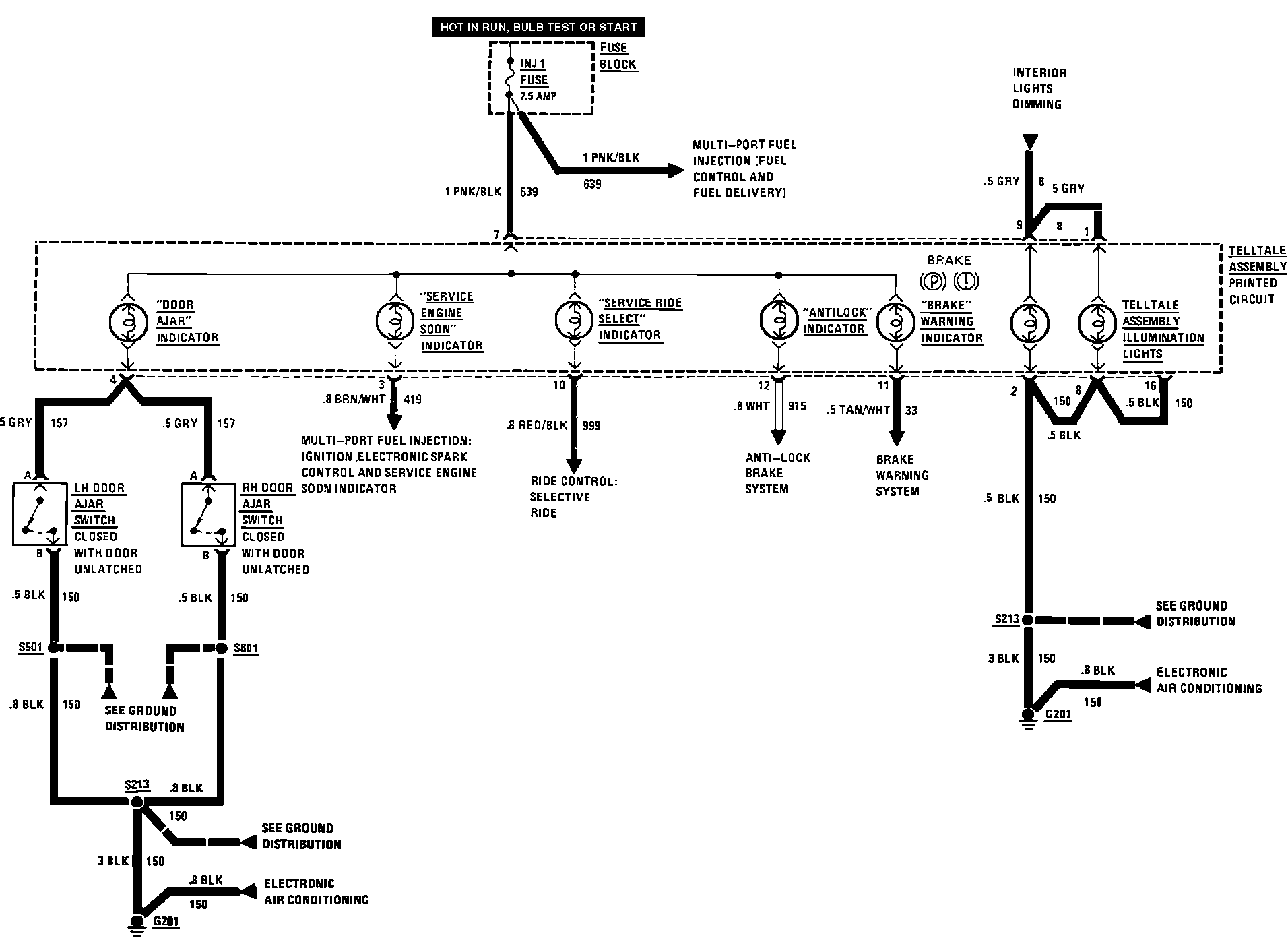

Instrument Panel Telltale Indicators:



Instrument Panel Telltale Indicators:
