Instrument Cluster Replacement

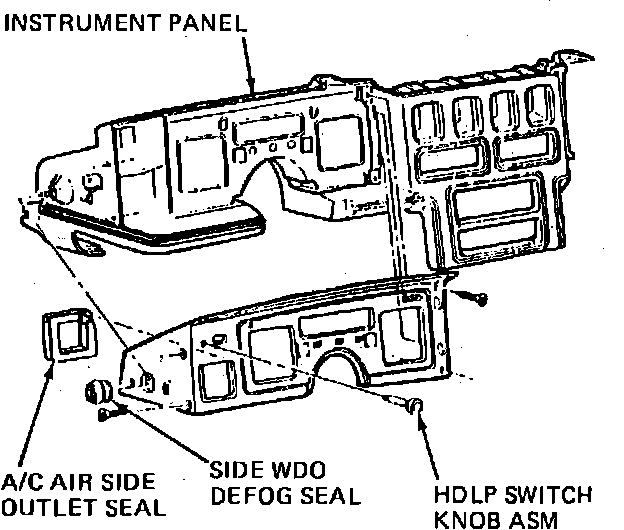

Fig. 25 Instrument Cluster Bezel Replacement. 1989:

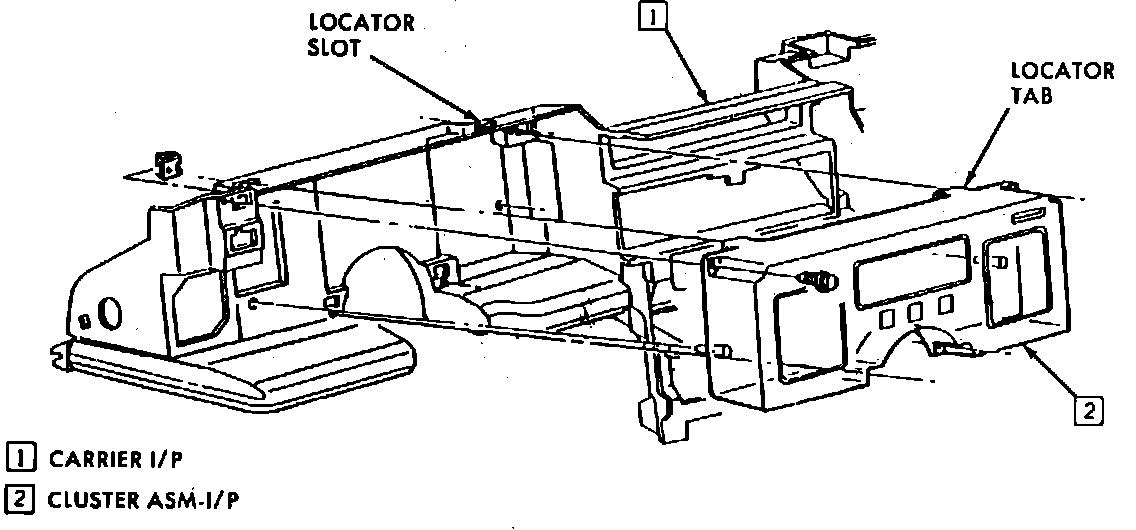

Fig. 26 Instrument Cluster Replacement. 1989:

1. Disconnect battery ground cable.
2. Remove left hush panel, lower instrument panel pad, and steering column cover.
3. Remove light switch knob and shaft, and bezel nut securing switch
4. Remove nuts securing steering column to instrument panel brace and lower column.
5. Remove cluster bezel retaining screws and bezel, Fig. 25.
6. Remove cluster retaining screws and pull cluster away from dash, Fig. 26.
7. Release metal retainers securing electrical connectors, disconnect electrical connectors from cluster, and remove cluster assembly.
8. Reverse procedure to install.
