Engine Data Sensors & Torque Converter Clutch (TCC)

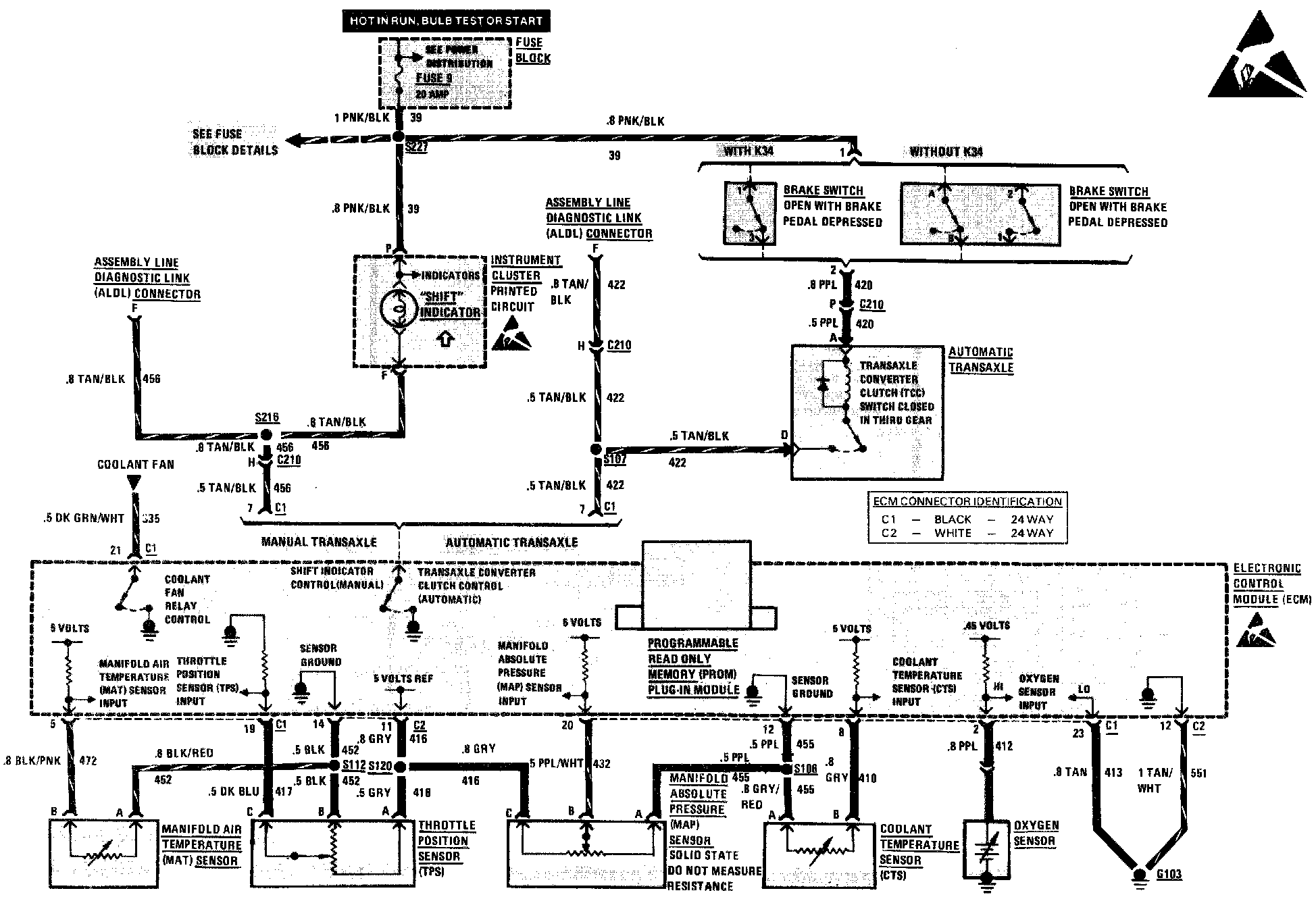

Engine Data Sensors and Torque Converter Clutch:
