Beretta L4-134 2.2L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Power, Grounds & Fuel Control
Power, Grounds & Fuel Control

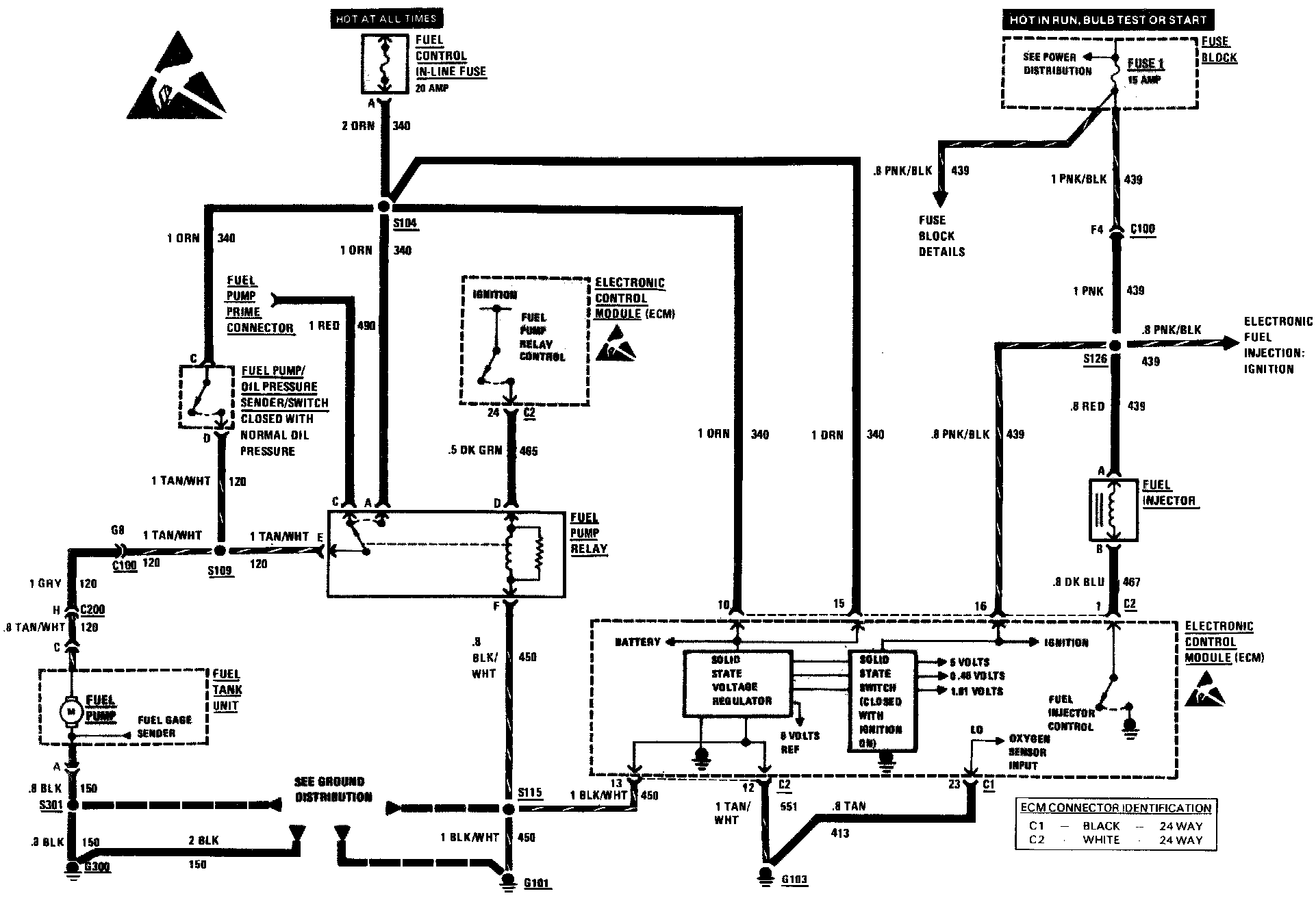

Power, Ground and Fuel Control:
