Throttle Position Sensor (TPS)
Throttle Position Sensor (TPS)
Throttle Position Sensor.:

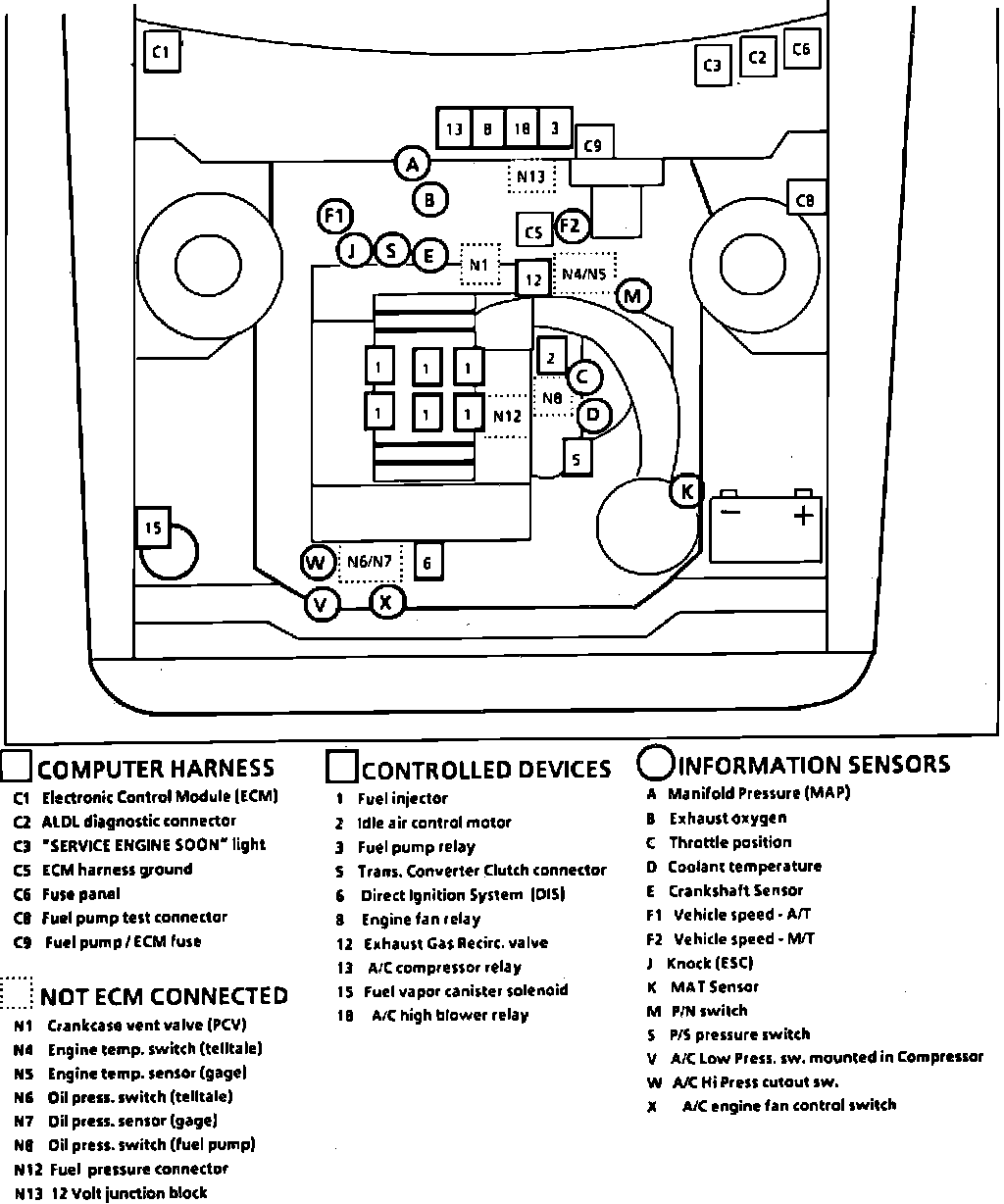

Engine Compartment.:
Top LH Side Of Engine, On Throttle Body
Applicable to: V6-192/3.1L
