Power, Grounds, Fuel Control & Injectors
Power, Grounds, Fuel Control & Injectors

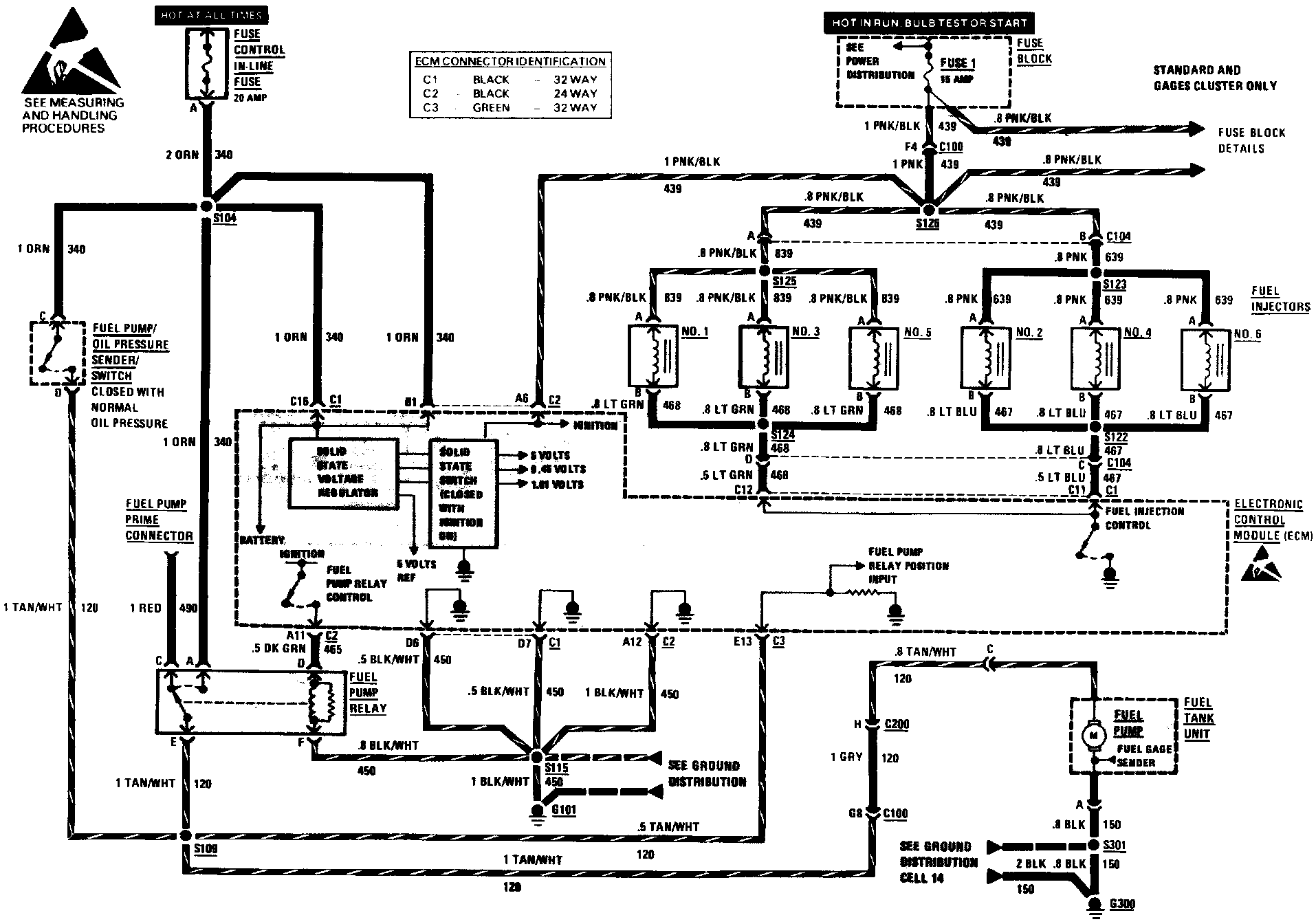

Power, Grounds, Fuel Control And Injectors:
