Home
>>
Chevrolet
>>
1990
>>
Camaro IROC-Z V8-305 5.0L VIN F FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>

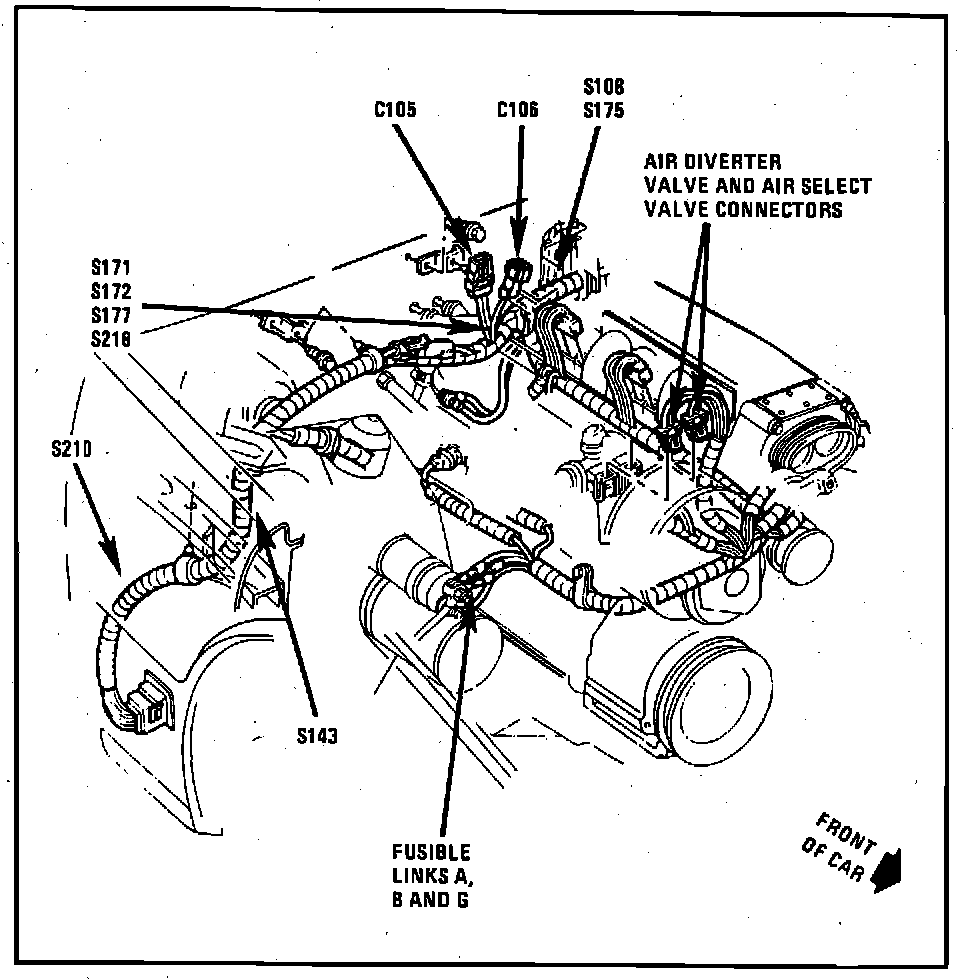

Fusible Link B
Fusible Link B
AIR Diverter/Select Valve Connectors.:
Lower RH Side Of Engine Near Starter
Applicable to: Camaro w/V8-305/5.0L VIN F
