Cooling System
>>
System Diagram
System Diagram

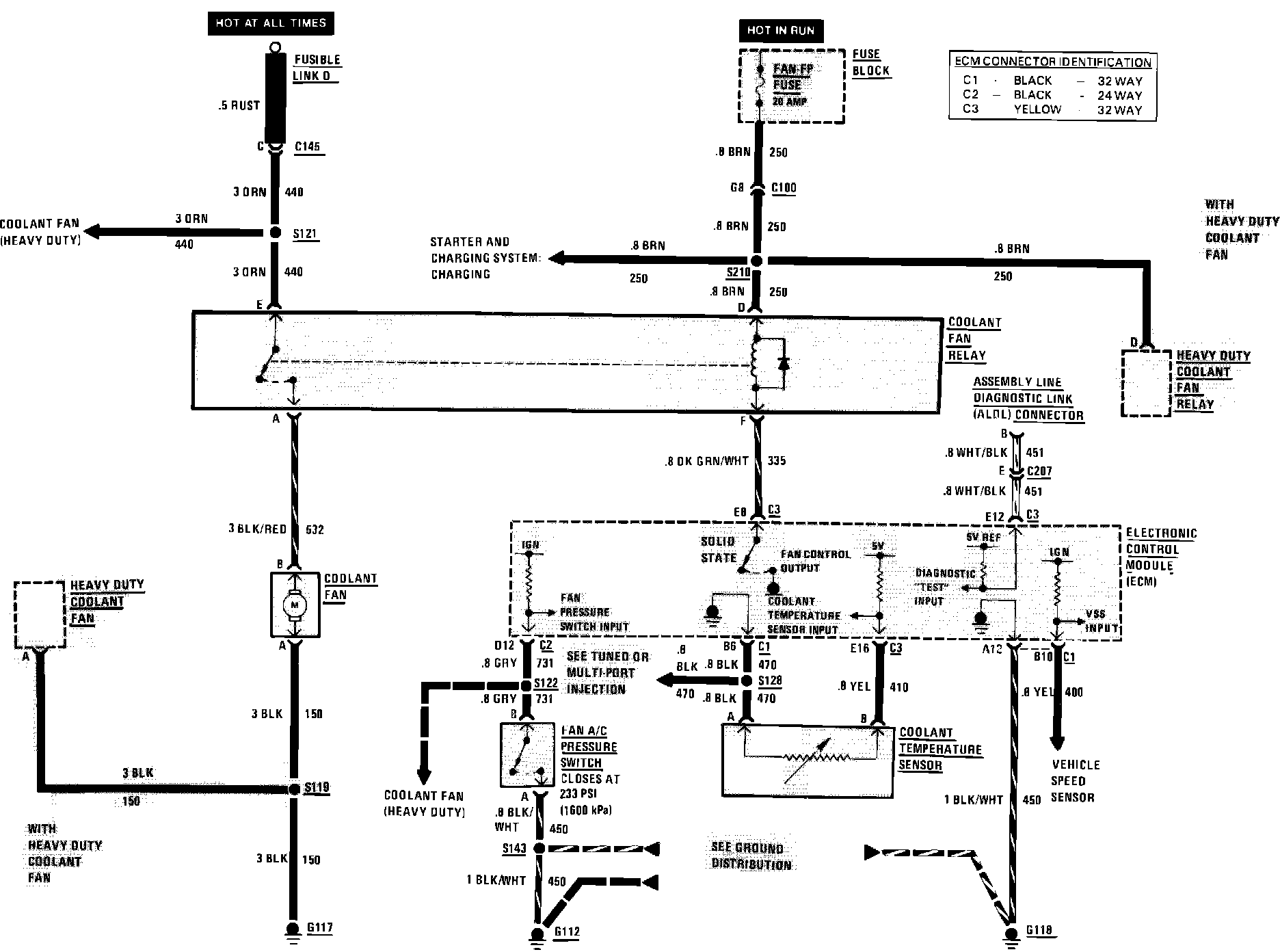

Cooling Fan Wiring Circuit:

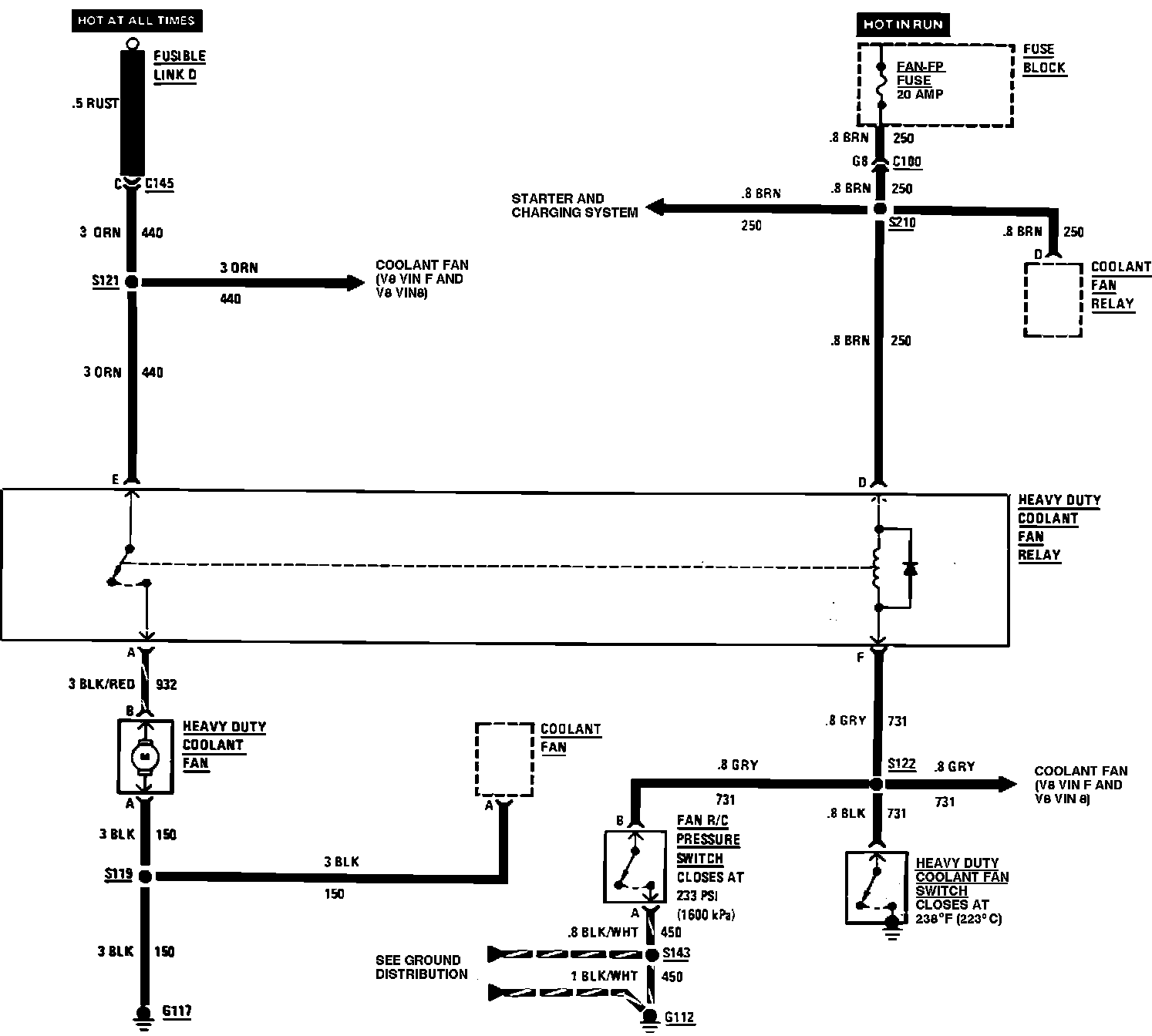

Cooling Fan (Heavy Duty) (Part 1 Of 2):
Cooling Fan (Heavy Duty) (Part 1 Of 2):
