Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1990
>>
Caprice V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Dome Lamp
>>
Rear Dome Lamp
Rear Dome Lamp

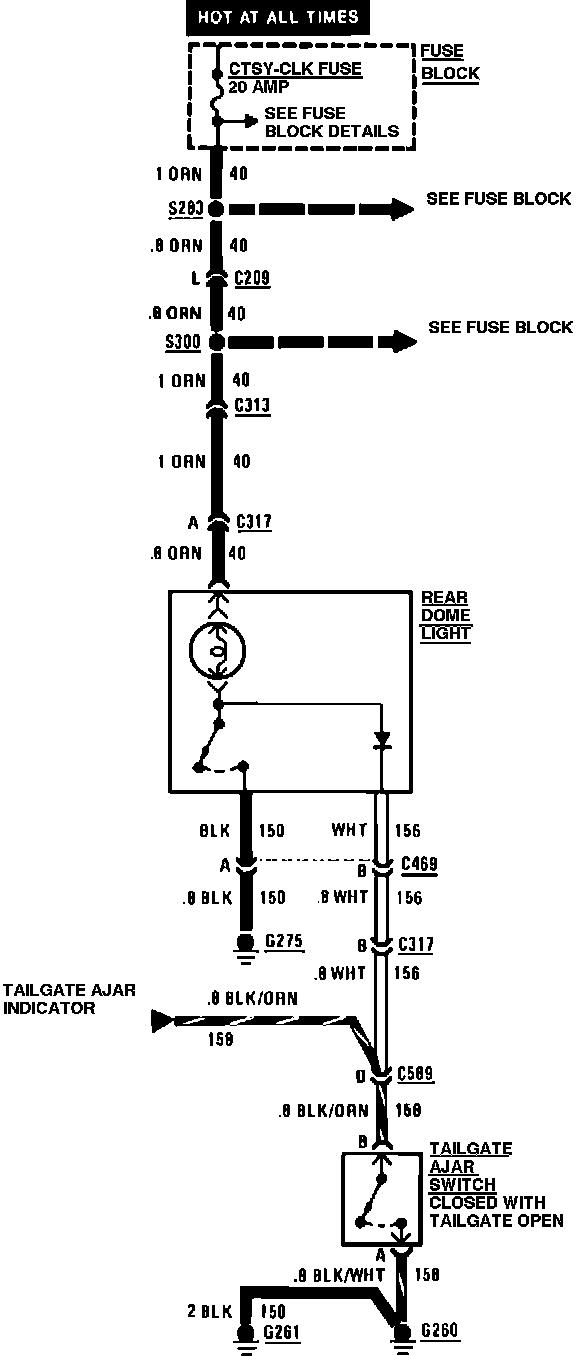

Interior Lamps. Rear Dome Lamp:
