Home >> Chevrolet >> 1990 >> Caprice V6-262 4.3L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

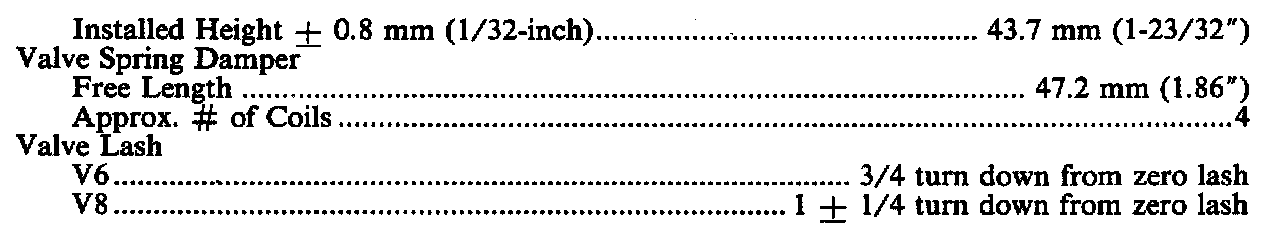

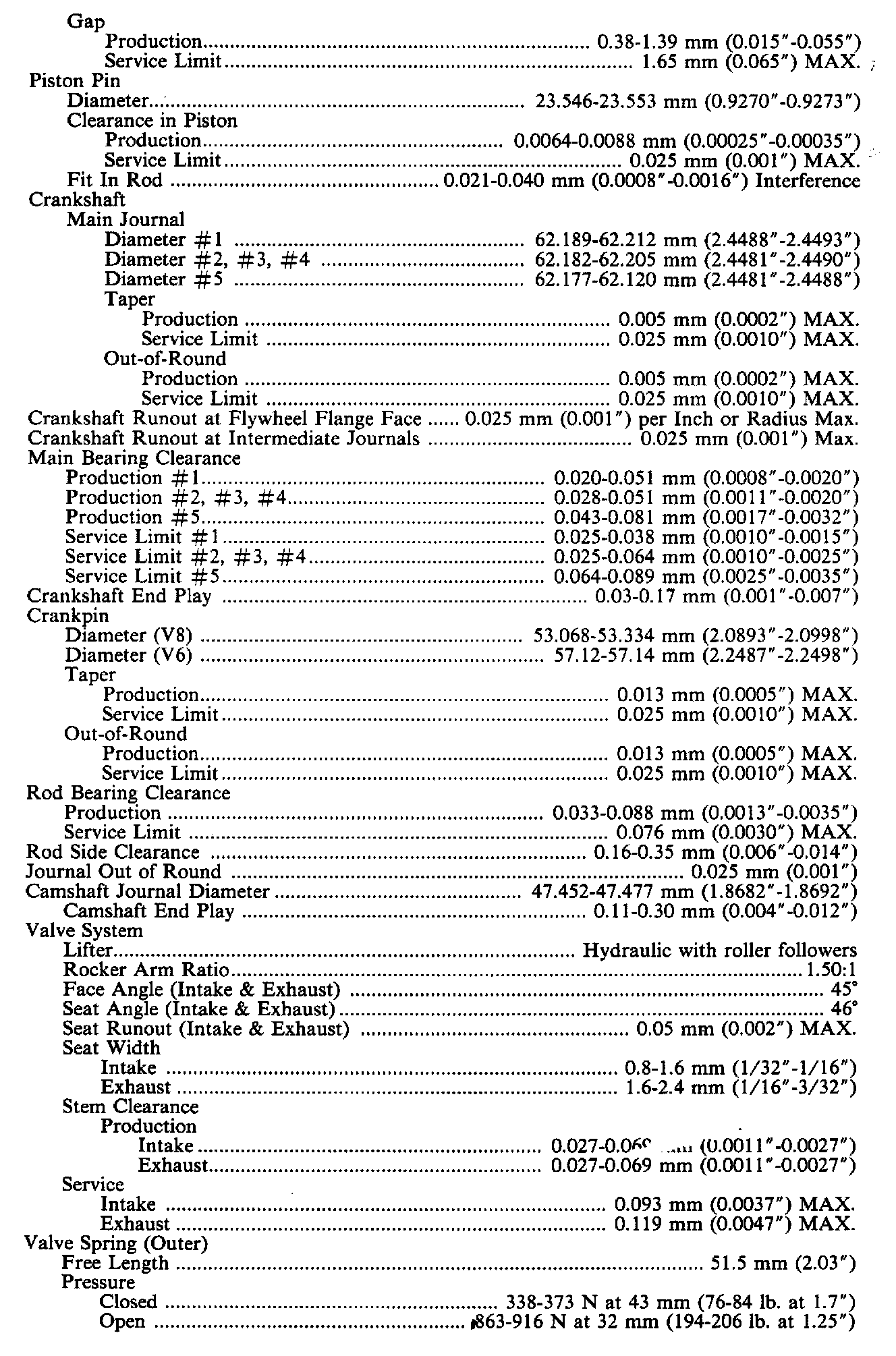

Engine Specifications:





Intake Manifold Torque Sequence:

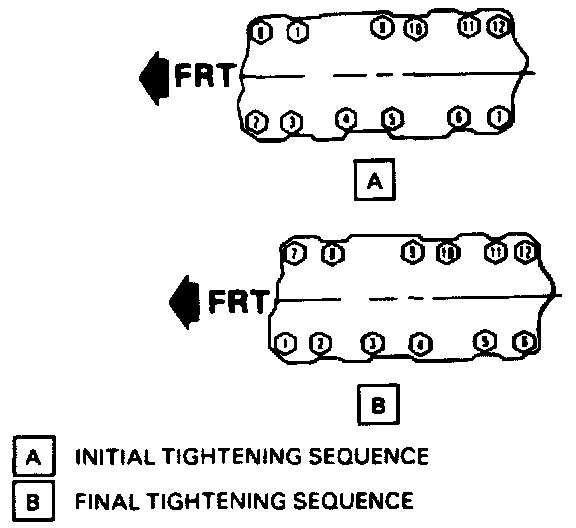

Cylinder Head Torque Sequence:
