Tail Lamp

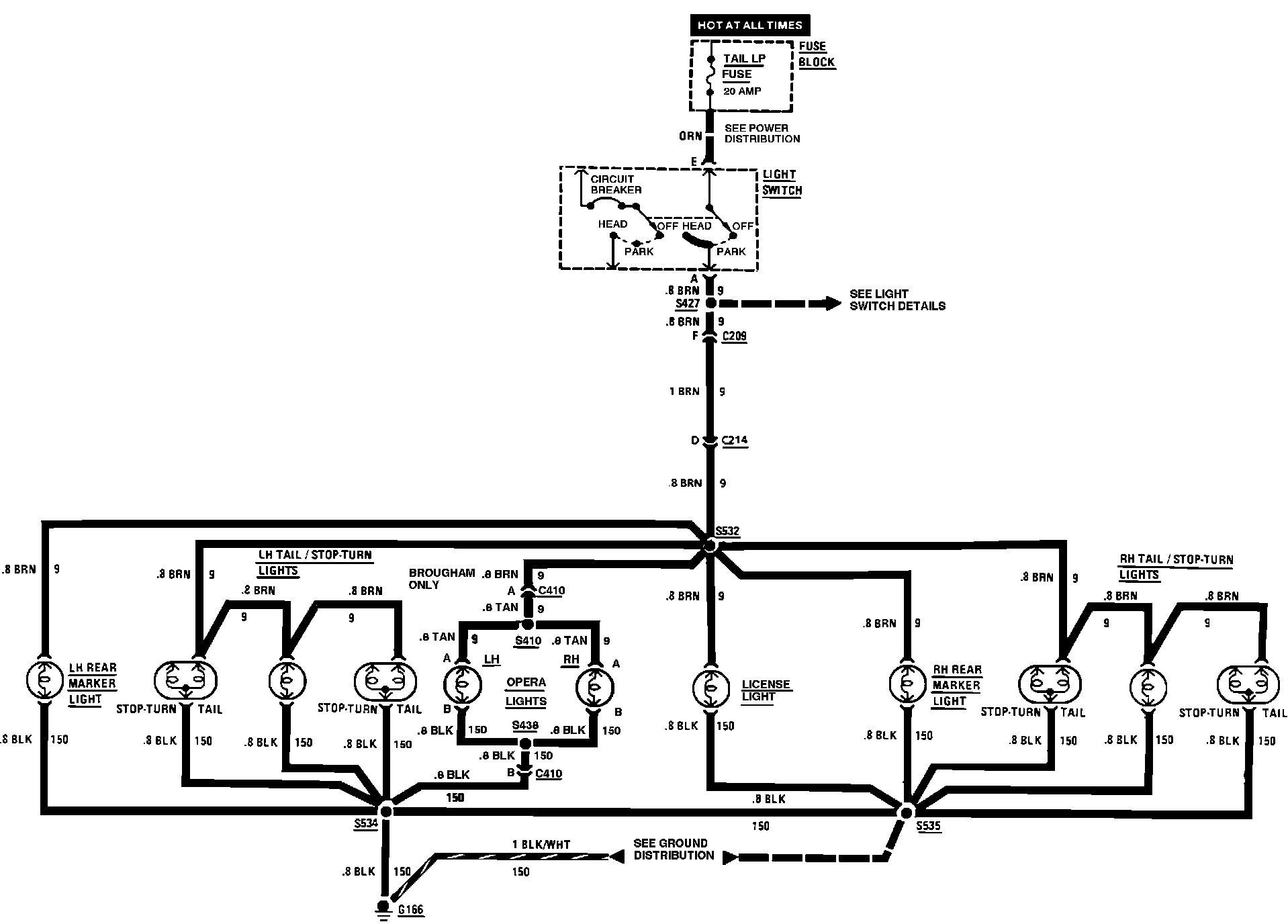

Exterior Lamps. License, Rear Marker & Tail. Sedan:



Exterior Lamps. License, Rear Marker & Tail. Wagon:
