Center Mounted Brake Lamp

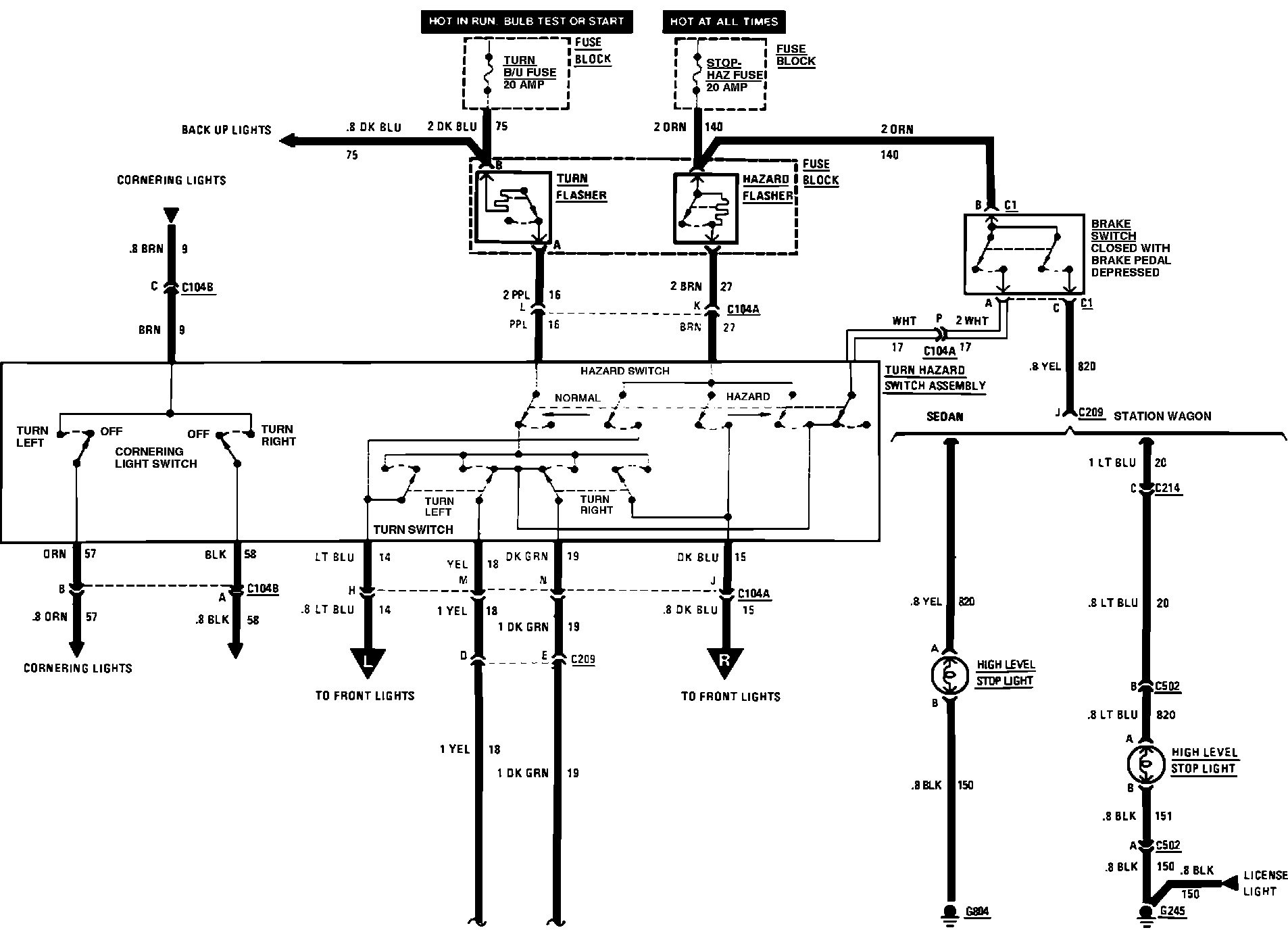

Exterior Lamps. Hazard/Turn & High Level Stop:



Exterior Lamps. Hazard/Turn & High Level Stop:
