Engine: Specifications

Engine Specifications:

Torque Specifications 5.7L (LT5):

Torque Specifications 7.7L (LT5):

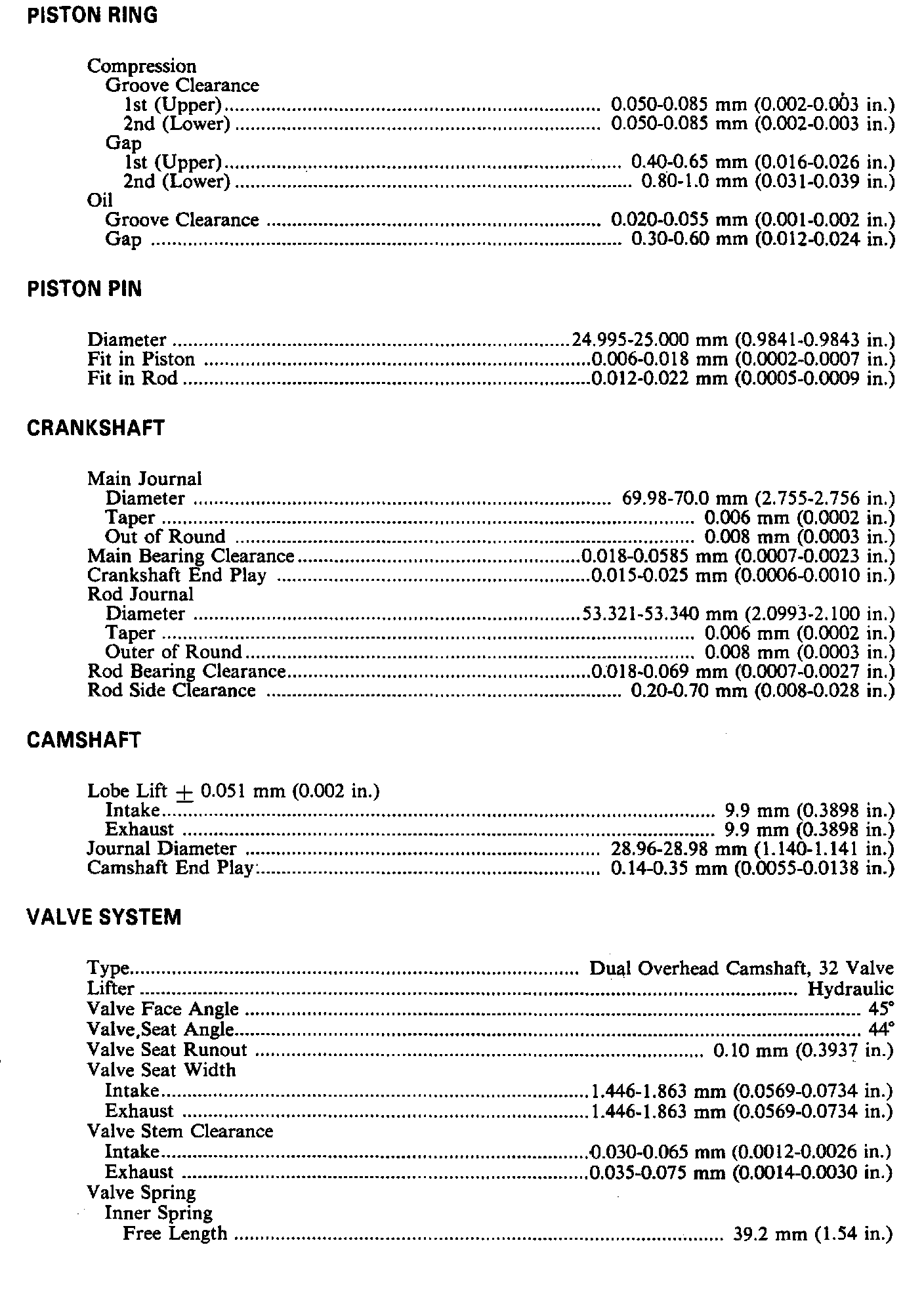

Engine Specifications:

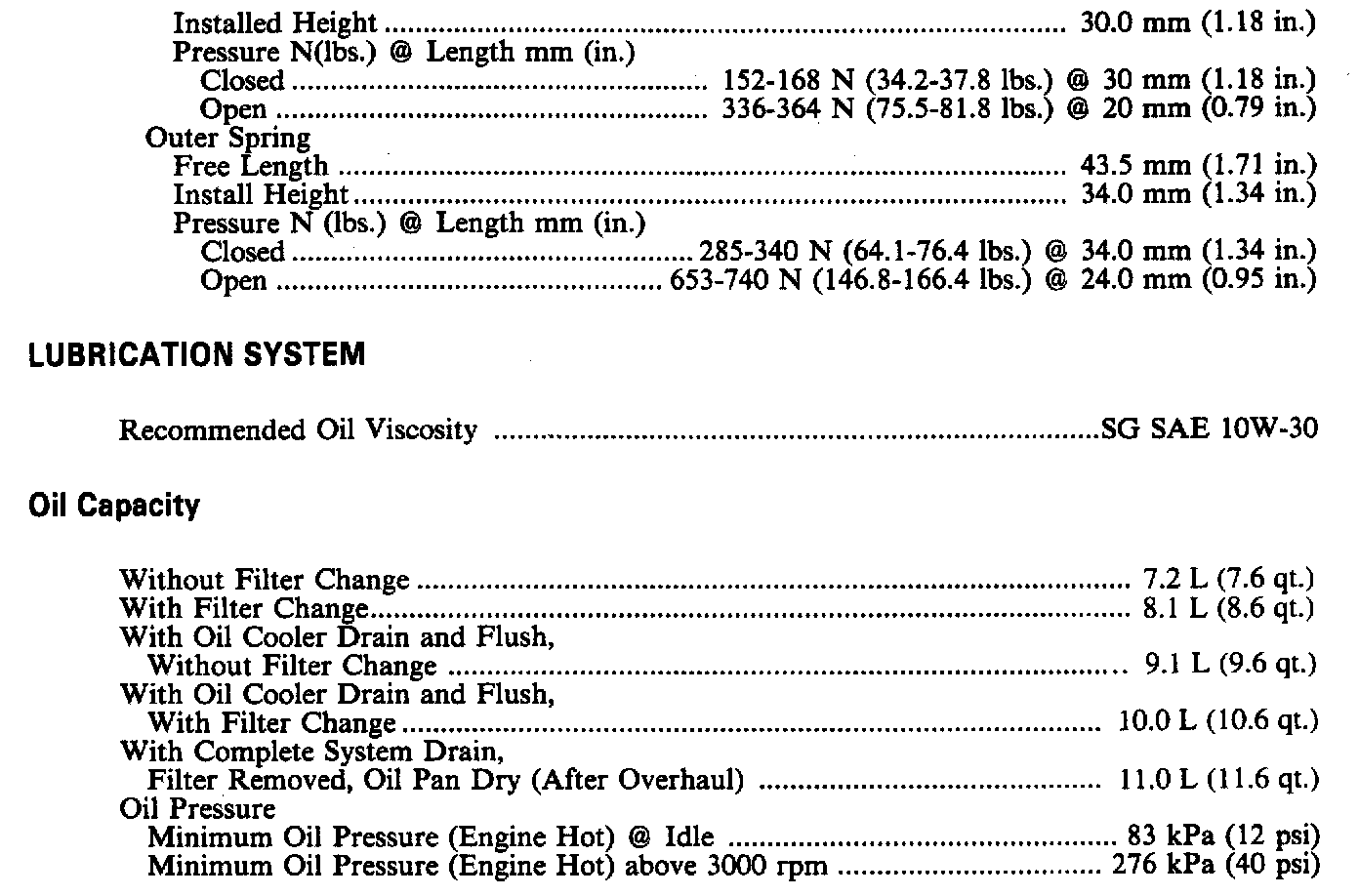

Engine Specifications 5.7L (LT5):

Engine Specifications 5.7L (LT5):

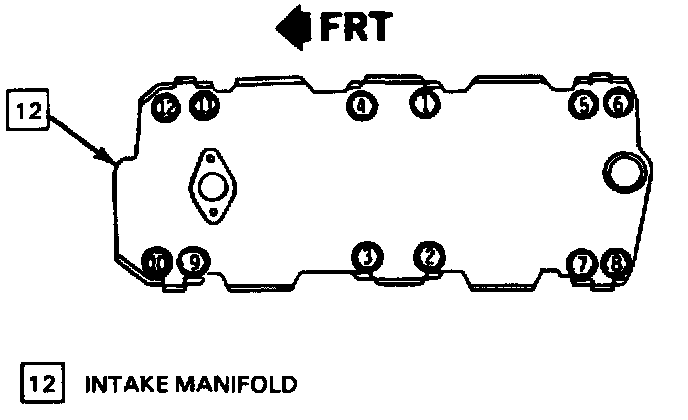

Intake Manifold Torque Sequence 5.7L (LT5):

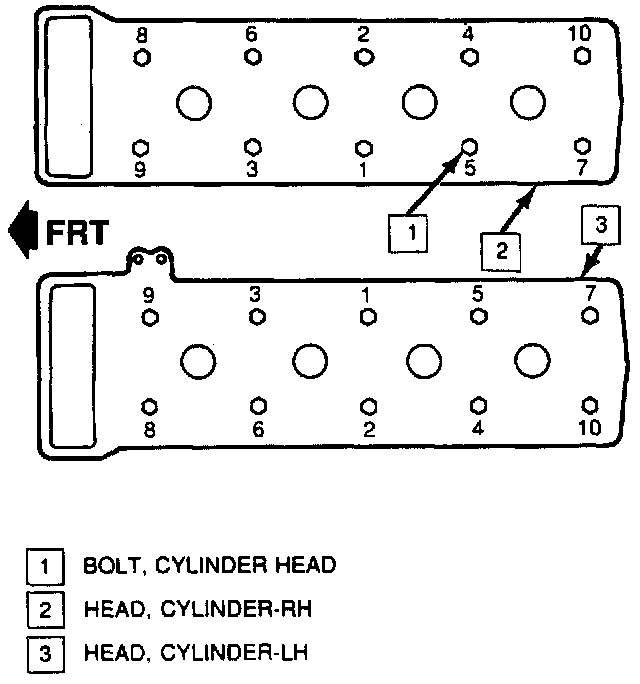

Cylinder Head Torque Sequence 5.7L (LT5):
